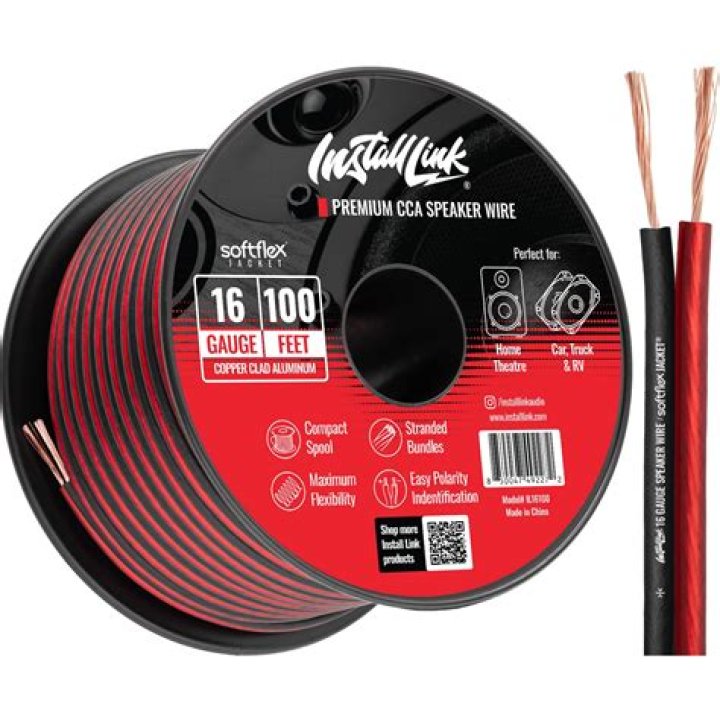

Can I double up 16 gauge speaker wire?
Can I double up 16 gauge speaker wire?
If this is for speakers with passive crossovers, just run one pair. Don’t bother doubling it up.
How do you determine the combined wire gauge?
To determine the effective AWG of multiple wires with a particular gauge. For example, to see the effective gauge of a cable made from x10 20-gauge wires, select 20 gauge from the drop list, then type 10 into the number of wires field and press the Tab; the combination is equivalent to a single 10 AWG gauge.
Can I double up wire?
Yes, this is a common practice. With electric motors, for example, we often substitute 2 or 3 thinner parallel wires for 1 thicker wire. This allows us to fit the wire through thinner openings and thinner wire is often easier to bend.
How many amps can 16 gauge wire?
Maximum current (amps) in a 12V electrical circuit vs. size (AWG) and length of wire.
| American Wire Gauge (#AWG) | ||
|---|---|---|
| Length (feet) | Maximum Current (amps) | |
| 15 | 16 | 12 |
| 20 | 14 | 12 |
| 25 | 14 | 10 |
Can you use 2 wires to increase gauge?
4 Answers. If you twist two wires together, each would carry half the current, so you’d “effectively increase the gauge.” American Wire Gauges go down by about 10 for every factor of ten in cross-sectional area. If you had ten #20 wires connected in parallel, they could carry as much power as one #10 wire.
Can you double 12 gauge wire?
#12 AWG is protected by a 20A fuse. Doubling #14, 12, 10, 8….wire to increase ampacity is not allowed. Doubling is allowed for much larger sizes.
Can you use two different gauge wires together?
It must be noted that while it is possible to splice different types of Romex wire—12/2 to 12/3, for instance—you should never splice together wires of a different gauge. Overloading a wire with more than its intended amperage could cause it to overheat, melt, and possibly catch fire.
Does doubling wire increase gauge?
What is a 16 gauge wire used for?
16-gauge are used for light-duty extension cords supporting 13 amps. 14-gauge are usedfor light fixtures, lamps, lighting circuits with 15 amps. 12-gauge are used in kitchen, bathroom, outdoor receptacles, and 120-volt air conditioners supporting 20 amps.
What does 16 AWG wire mean?
American Wire Gauge
AWG stands for American Wire Gauge. It pertains to the diameter of the wire. The lower the AWG, the more current capacity it can carry. For instance, a 16AWG is thicker and can carry 13 Amps, but an 18 AWG is thinner and can only carry 10 Amps. Any electrical appliance.
Can you double 14 gauge wire?
14 AWG wire has to be protected by a 15A fuse. Doubling #14, 12, 10, 8….wire to increase ampacity is not allowed. Doubling is allowed for much larger sizes. The #14 AWG Romex is not useless, keep it for any circuit that will be protected with 15A fuse.
