Reduce stack effect. Stack effect causes cold outdoor air to enter a building any way it can, on the lower levels, especially through larger openings such as entry doors, loading docks, and mechanical rooms. Reducing infiltration driven by stack effect is done by reducing airflow paths for stack effect airflow..
Consequently, how do you stop stack effect?
To stop energy loss and improve home comfort, you must fix all air leaks at your home structure's entry points. Work your way from the top to the bottom of the house and seal cracks with caulk. Use expanding foam spray for larger cracks.
Also, how do I fix the stack effect in my chimney? The cure to Stack Effect is therefore a combination of adding adequate ventilation air and sealing the leaks in the uppermost areas of the house. Sealing air leaks only in the basement can aggravate the situation.
Similarly, you may ask, what causes stack effect?
The cause of stack effect is the difference in density between the cold, denser air outside the building and the warm, less dense air inside the building. When the temperature outside the building is warmer than the temperature inside the building, the stack-effect phenomenon is reversed.
What is stack effect in a house?

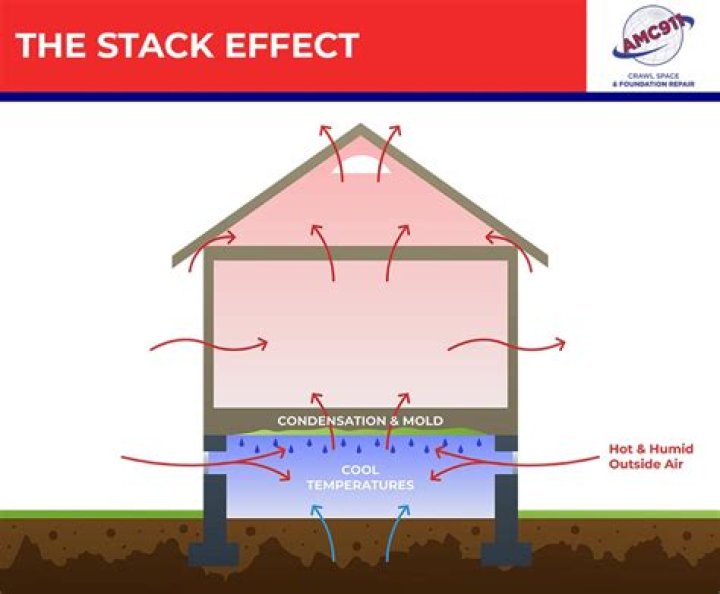

July 2016) Stack effect or chimney effect is the movement of air into and out of buildings, chimneys, flue-gas stacks, or other containers, resulting from air buoyancy. Buoyancy occurs due to a difference in indoor-to-outdoor air density resulting from temperature and moisture differences.
Related Question Answers
How does stack ventilation work?
Stack ventilation uses temperature differences to move air. Hot air rises because it is lower pressure. For this reason, it is sometimes called buoyancy ventilation. This lower pressure can help suck fresh air through the building.Why is my attic so cold in the winter?
In the winter, a well-ventilated attic expels water vapor that would otherwise condense in the insulation. Proper ventilation also maintains a cold roof in the winter and prevents the formation of troublesome ice dams. This will happen when the attic temperature is low and there is little air circulation.What is wind effect and stack effect?
Air Infiltration is caused by wind, stack effect, and mechanical equipment in the home (see Figure 1 below). The “stack effect” is when warm air moves upward in a building. This happens in summer and winter, but is most pronounced in the winter because indoor-outdoor temperature differences are the greatest.What is passive stack ventilation?
Passive stack ventilation (PSV) is the most effective natural ventilation strategy as it uses a combination of cross ventilation, buoyancy (warm air rising) and the venturi (wind passing over the terminals causing suction) effect.Does summer or winter have impact on stack effect?
In the winter stack effect, heat rises because it's moving with the warm air that's less dense than the colder surrounding air. In summer, it moves downward as it follows the cool, dense air.What is stack draft?
The combustion flue gases inside the flue gas stacks are much hotter than the ambient outside air and therefore less dense than the ambient air. That movement or flow of combustion air and flue gas is called "natural draft", "natural ventilation", "chimney effect", or "stack effect".What is a venturi valve?
ABOUT VENTURI VALVES Triatek's Venturi valves maintain the desired airflow regardless of duct pressure. This is accomplished with a cone and spring-loaded piston inside the cone. As the duct pressure increases, the spring compresses and pushes the cone further into the shell.What is wind effect?
What is the Wind Effect? When the wind collides with the side of a building, different amounts of pressure are exerted upon different sides of the building. The side directly facing the wind experiences the highest force of air and as a result a higher air pressure.What is natural ventilation in buildings?
Natural ventilation is the process of supplying air to and removing air from an indoor space without using mechanical systems. It refers to the flow of external air to an indoor space as a result of pressure differences arising from natural forces.What is venturi effect in architecture?
The Venturi effect states that in a situation with constant mechanical energy, the velocity of a fluid passing through a constricted area will increase and its static pressure will decrease. The "Venturi effect" can also be created to increase the velocity of air movement in the area of the structure.What is stack effect in VLSI?
The leakage of transistors in a stack is a function of no. of transistors and input pattern. Source biasing is the general term for several techniques that change the voltage at the source of a transistor. The goal is to reduce VGS, which has the effect of exponentially reducing the subthreshold current.Which type of building is most prone to the stack effect?
Elevator shaft, stairwells, utility conduits, and other unpartitioned spaces are particularly vulnerable to stack effects. Failing to plan for the stack effect can cause some real problems. For example, The taller the building, the greater the pressure difference between air at upper floors and at the ground floor.What is cross ventilation?
Cross ventilation (also called Wind Effect Ventilation) is a natural method of cooling. The system relies on wind to force cool exterior air into the building through an inlet (like a wall louver, a gable, or an open window) while outlet forces warm interior air outside (through a roof vent or higher window opening).What makes a chimney draw?
The rising hot gas creates a pressure difference called draft which draws combustion air into the appliance and expels the exhaust gas outside. Two factors affect the amount of draft produced by a chimney. Heat: the hotter the gases in the chimney compared to the air outside, the stronger the draft.How does a natural draft work?
Natural Draft is thermal draft. It occurs when heated gases expand. A given volume of hot gas will weigh less than an equal volume of the same gas at a cool temperature. Since hot combustion gases weigh less per volume than room air or outdoor air, they tend to rise.How does a chimney stack work?
Chimneys are typically vertical, or as near as possible to vertical, to ensure that the gases flow smoothly, drawing air into the combustion in what is known as the stack, or chimney effect. The height of a chimney influences its ability to transfer flue gases to the external environment via stack effect.
