How do drum brakes adjust themselves?

The commonest uses a threaded adjuster with a ratchet wheel on it. The adjuster pawl moves towards it when the brake is operated and if it moves past the ratchet due to the shoes being worn, it catches it on the way back and moves the screw round. This extends the adjuster, taking up slack in the brake.

.

Hereof, how do I know if my drum brakes need to be adjusted?

Technical Bulletins

1. Inconsistent brake pedal feel. If the rear brakes are drum brakes, the driver may feel vibrations under braking.
2. Hand brake feels loose. If the hand brake requires a hard yank to keep the car from rolling off, chances are the brake shoes need replacing.
3. Scraping noise while braking.

One may also ask, will my drum brakes self adjust? They can adjust themselves going forward or backward. Keep in mind that even self-adjusting brakes require 1 initial adjustment. Basically if the brake shoes have to move too far before they touch the drums a pulley spins the adjustment wheel which then takes and adjusts the shoes out a bit further.

One may also ask, can you adjust rear brakes by backing up?

All you should realy need to adjust the brakes is simply a 5 to 10 mile per hour roll backwards and firmly stop the car to allow the brakes to rock backwards then with your foot on the brakes move the car forward to adjust the brakes. Yes they will adjust going forward but not as much or really good.

When should drum brakes be replaced?

The brake drums on your car are built to last for about 200,000 miles. In some cases, the drums will wear out sooner due to worn out internal components that put more strain on the drum. As your brake drums begin to wear down, they will actually become smaller.

Related Question Answers

What is self servo action on drum brakes?

Self-servo effect. : The self-servo effect is when a brake shoe, due to the direction of rotation of the drum, is dragged into contact with the drum. You only need to get the shoe into contact with the drum, and the self-servo effect does the rest.

Do trailer brakes self adjust?

Trailer brakes can be either self-adjusting like the Dexter # 23-468 or may require periodic manual adjustments like # 23-27, depending on the particular model assemblies you have installed on the trailer.

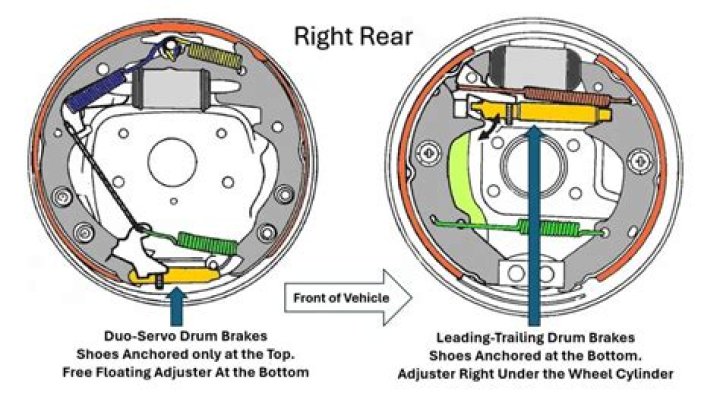

What are the two types of drum brakes?

There are three types of drum brake systems: twin leading shoe, leading/trailing shoe (also called single leading shoe), and duo-servo. Each type uses similar drum brake components but functions a bit differently. All three types are self-energizing in at least one direction. The first two types are non-servo brakes.

How do you fix drum brakes?

Part 1 of 4: Prepare the vehicle

1. Materials Needed.
2. Step 1: Loosen the lug nuts of the vehicle.
3. Step 2: Secure the vehicle on jack stands.
4. Step 2: Remove the brake drum.
5. Step 3: Clean the drum brake assembly.
6. Step 4: Inspect the brakes.
7. Step 5: Disassemble the brake drum assembly.
8. Step 6: Remove the brake drum shoes.

Why won't my brake drum go back on?

A common problem when rebuilding rear drum brakes is that the brake cylinder has too much air or fluid in it causing the brake shoes to be pushed too far out. Then the brake drum won't go back on as you experience. The brake drum should now go back on smoothly. Bleed that brake, and move on to the other side.

What can occur when drum brakes get too far out of adjustment?

If they get too far away from the drum (as the shoes wear down, for instance), the piston will require more fluid to travel that distance, and your brake pedal will sink closer to the floor when you apply the brakes. This is why most drum brakes have an automatic adjuster.

How do you know if your rear drum brakes are going bad?

One of the first symptoms of bad or failing drum brakes is unusual brake pedal feel. If the brake drums are worn excessively they can cause vibrations that may be felt in the pedal. Worn drums may also cause shuddering or pulsating that will become noticeable once you step on the pedal.

Do drum brakes have wear indicators?

A brake lining wear indicator is attached to a drum brake shoe backing plate adjacent the brake lining. The indicator provides a visual gage dimension that assists in the determination of when the brake linings should be replaced.

What is meant by a self adjusting brake?

Self-Adjusting Brakes. Prev NEXT. The single-piston floating-caliper disc brake is self-centering and self-adjusting. The caliper is able to slide from side to side so it will move to the center each time the brakes are applied.

Does O'Reilly turn brake drums?

Drum & Rotor Resurfacing Most O'Reilly Auto Parts locations can resurface your vehicle's drums and rotors if they measure within specs and aren't showing signs of extreme wear. Surface finish is crucial to proper vehicle braking and pad life and should always be part of a complete brake job.

How do you put drum brakes back together?

Steps

1. Put on an asbestos respirator.
2. Remove the hubcap and loosen the lug nuts.
3. Spray the hub of the wheel with a penetrating oil such as PB Blaster.
4. Grab the brake drum by the edges and pull it off.
5. Note: some brake drums are held on with screws so you will need to remove those first.
6. Once the drum is off take a look at it.

Do drum brakes need to be replaced?

On most cars, brake drums are found in the rear wheels. This is primarily because of their relatively low cost and the ease of a parking brake to connect to them. Like all brake system components in a car, they wear down from time to time and need to be replaced.

Does backing up adjust brakes?

If the starwheel is located at the base of the brakes and acts as the hinge point for the shoes, then the adjustment is done by backing up. Although the parking brake usually activates this action as well.

What is a drum brake self adjuster?

The brake adjuster is used in drum brake systems to keep the brake shoes at the proper distance from the brake drums as they wear. This assures that your brake pedal feel won't suffer as your brake shoes wear down.

Can you adjust self adjusting brakes?

Self-adjusting brakes #AKEBRK-7-SA do not require that you travel in reverse for them to adjust. They can adjust themselves going forward or backward. Keep in mind that even self-adjusting brakes require 1 initial adjustment.

How hot do drum brakes get?

I have found that good working brake drums should attain a heat range of 160 degrees and 180 degrees. Temperatures over 200 degrees lead to brake fade and paint blistering of drums. Anything less than 150 degrees indicates brakes need adjustment or repair and may not be working correctly.

How does a parking brake work on drum brakes?

Drum brakes: On vehicles with drum brakes on the rear axle, the parking brake cable pulls on a lever mounted within the rear brake drum. In turn, this moves the brake pads (and, of course, the floating caliper) toward the spinning rotor, effectively stopping the car.

Are drum brakes good?

Drum brake advantages Drum brakes can provide more braking force than an equal diameter disc brake. Drum brakes last longer because drum brakes have increased friction contact area than a disc. Drum brakes are cheaper to manufacture than disc brakes. Rear drum brakes generate lower heat.

How do you adjust self adjusting air brakes?

How to Adjust Self Adjusting Air Brakes

1. Jack the vehicle up with the jack. Place it on jack stands.
2. Look next to a rear wheel and find the brake chamber.
3. Look at the back of the push rod to find the adjustment nut.
4. Turn the nut in the other direction so that you hear it ratcheting as you turn.
5. Measure the distance the push arm travels into the brake chamber.
