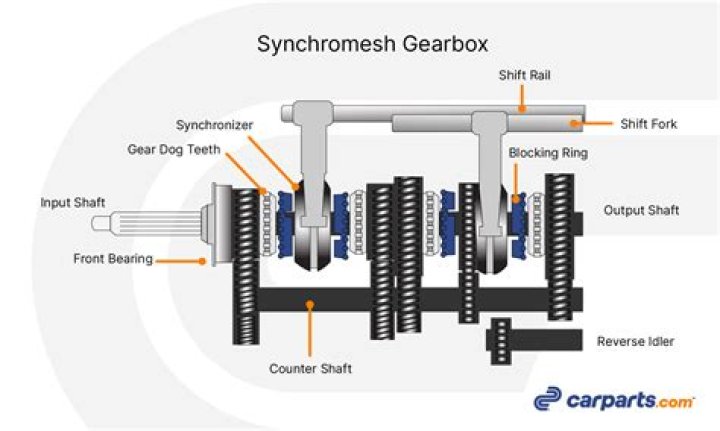

How do gearbox Synchros work?

A synchronizer, or "synchro," lets the collar and gear synchronize their speeds while they're already in contact but before the dog teeth engage. Then the outer part of the collar moves out of the way so that the gear can be engaged by the dog teeth.

.

Regarding this, how much does it cost to replace Synchros?

"Depends on who does it, but i would say $1500 just to replace the syncro, the longer you wait the more expensive it will get, as they grind the gears them selves will be damaged, each gear in there is usually around $400 and the sliding gear is probably another $450.

Likewise, how do Synchros get damaged? Improper clutch adjustment is the #1 cause for synchro failure in the 3S 5-6 speed trans. The original synchros are a good design and can withstand a lot of abuse, but once a clutch starts to drag and the driver starts to force the trans into gear, the synchro rings will be badly damaged in short time.

Likewise, people ask, how does the gearbox work?

Most modern gearboxes are used to increase torque while reducing the speed of a prime mover output shaft (e.g. a motor crankshaft). This means that the output shaft of a gearbox rotates at a slower rate than the input shaft, and this reduction in speed produces a mechanical advantage, increasing torque.

Can you drive with bad Synchros?

If people are driving the cars with bad synchros they just try to prevent the noise by shifting very slowly. It's not a good idea to wait until every shift is noisy. Normally the synchros should be checked if you install the shorties or whatever. Another $1000 with the bearings but worth it.

Related Question Answers

What does a bad synchro sound like?

Bad synchro mean a bit of a clunky feel and sound when you shift, up or down but more often down. Typically it will start with shifting down to first while still moving slowly as when approaching a stop sign. The sound you describe sounds like a worn throwout bearing.

How do you check transmission Synchros?

60 How can you tell if your synchro is REALLY shot?

1. Change the gear oil.
2. Drive the car for 15 to 20 minutes to get the transmission warm.
3. Accelerate the car to 10 to 40 MPH for gears 1 thru 4.
4. Leaving the clutch engaged, release the accelerator pedal.
5. If the gear select lever (gear shift) pops out of gear that syncro is.

How do you diagnose a bad manual transmission?

Here are some symptoms that can indicate a worn-out transmission, each one of which we discuss below.

1. Odd sounds (whirring, squealing, bumping, or thumping)
2. Grinding noise.
3. Transmission jumps out of gear (into neutral)
4. Difficulty shifting gears.
5. Car stuck in one gear.
6. Car that can't get into gear.
7. Leaking transmission oil.

What does a synchro do in a transmission?

A synchronizer, or "synchro," lets the collar and gear synchronize their speeds while they're already in contact but before the dog teeth engage. Each manufacturer's synchro is slightly different than the others, but the basic idea is the same.

Can you double clutch a synchronized transmission?

Double clutching isn't necessary anymore with modern transmissions. Modern transmission have synchros and other devices which help match the speeds of the input and output shafts for smooth shifting. You don't need to double clutch. This prevented grinding the gears and provided for smooth shifting when done correctly.

Is it cheaper to replace or rebuild a transmission?

Costs can run anywhere from $1500 for minor repairs to $4000 for a complete rebuild. If the problem is minor you should opt for repair, but if repairs cost more than transmission replacement you should consider the latter as you'll be saving money as well as getting a quality transmission out of it.

What causes the gears to grind?

Common reasons for this to happen: Worn out Clutch: Over time, a vehicle's clutch can wear out causing a grinding noise and sensation. City driving and excessive use can cause the clutch to wear out sooner. Worn out Gear Synchronizers: Gear synchronizers can also wear out over time.

Why is double clutching necessary?

While double clutching is not necessary in a vehicle that has a synchronized manual transmission, the technique can be advantageous for smoothly downshifting in order to accelerate, and when done correctly it prevents wear on the "synchros" which normally equalize transmission input and output speeds to allow

How much does it cost to fix 3rd gear synchro?

Re: How much to replace a 3rd gear synchro? ( If you pull the trans yourself, expect to pay $400-600 to get it fixed.

How much does it cost to repair a manual transmission?

Transmission replacement costs also vary widely, but manual transmissions typically are cheaper, falling into a rough range of $1,500 to $3,000 for non-luxury vehicles. Automatics are more expensive, with a range of roughly $2,000 to $4,000 for a re-manufactured transmission for most vehicles from mainstream brands.

How do you double clutch?

To double-clutch shift, first you press the clutch pedal to free the engine from the transmission. This allows the collar to move into neutral without the engaged dog teeth in the side of the gear. When you release the clutch pedal, you have to rev the engine to get it to the right rpm value for the next gear.

How much does it cost to fix 2nd gear synchro?

We charge around $3000 - $4000 for a tranny rebuild - R&R synchros, sliders, synchro hubs etc.. But if you have a good tranny with synchros that are worn, would it make sense to make a pre-emptive strike and just replace/flip synchroes as needed?

What does it mean to grind your gears?

grind (someone's) gears To greatly or specifically irritate or annoy someone. It really grinds my gears when cyclists go zipping through red lights!

What does double clutching mean?

Double clutching means at this point, you release the clutch, while the transmission is still in neutral. Releasing the clutch pedal links the engine and clutch together, but the transmission output shaft is rotating faster, as it's connected to the driven wheels.

What is a gear synchronizer?

In automobiles, a synchronizer is part of a synchromesh manual transmission that allows the smooth engagement of gears. In aerial warfare, a synchronizer is a device that permits an automatic weapon to fire between the blades of a revolving propeller.

Does reverse gear have a synchro?

The reason reverse gears are spurs is because reverse requires an idler gear to prevent accidentally shifting into reverse while moving. This is what is known as the gears not being synchronized, and this is also why you cannot shift into reverse when you're moving.

Do automatic transmissions have Synchros?

Any transmission that requires the driver to manually synchronize the engine speed with the speed of the driveshaft is non-synchronous. All automatic transmissions have synchronizing mechanisms, and semi-automatic transmissions that use dog clutches typically have cone-and-collar synchronizing mechanisms.

How do you change a manual transmission?

How to Install a Manual Transmission

1. Disconnect the negative battery cable.
2. Set the transmission housing squarely in the jack cradle and cinch the four end clamps against the case housing.
3. Slide the transmission jack under the vehicle.
4. Move the transmission forward.
5. Push the transmission input shaft toward the opening of the clutch and pressure plate.

What is a synchronized manual transmission?

The Synchronized Manual Transmission – Defined. Modern synchronized manual transmissions are of the “constant mesh” variety. This means that idling (free spinning) gears on a main shaft are in constant mesh with a corresponding set of gears, machined as one single component and forming a second “lay shaft.”
