How is a sling psychrometer used?

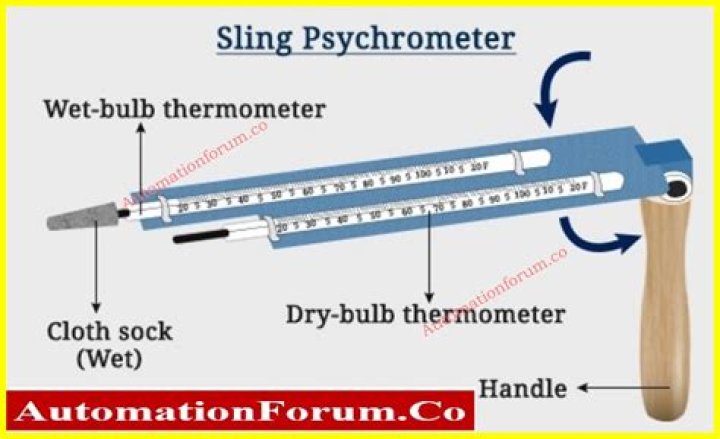

The sling psychrometer is used to measure relative humidity. This is one of the simpler designs of psychrometers available on the market. It consists of two thermometers, a wet bulb, and a dry bulb. These are attached on to a frame which has a string or light chain in the middle.

.

Correspondingly, how does a sling psychrometer work?

Working Mechanism. The sling psychrometer works by allowing the water soaked up by the cloth wick/sock covering the wet-bulb thermometer to get evaporated into the air. This is measured by the wet-bulb thermometer. At the same time, the dry-bulb thermometer provides the original reference temperature reading.

Beside above, what unit does a sling psychrometer use? Application of Sling Psychrometer It is used for checking humidity level in air-conditioned rooms and installations. It is used to set and check hair hygrometer. It is used in the measurement range of 0 to 100% RH. It is used for measuring wet bulb temperature between 0'C to 180'C.

People also ask, how do you use a psychrometer?

A psychrometer measures the relative humidity in the atmosphere through the use of two thermometers:

1. a dry bulb thermometer, is used to measure the temperature by being exposed to the air.
2. a wet bulb thermometer, measures temperature by having the bulb dipped in a liquid.

How do you use a sling psychrometer to measure relative humidity?

During the whirling, the water evaporates from the wick, cooling the wet-bulb thermometer. Then the temperatures of both thermometers are read. You can make a sling psychrometer by using two commercial thermometers. Wrap the bulb of one tightly with a piece of cloth.

Related Question Answers

What is sling psychrometer made of?

A sling psychrometer consists of two thermometers; a dry-bulb and a wet-bulb. The dry-bulb thermometer takes the reading of the surrounding air while the wet-bulb thermometer records the amount of cooling that is required for the water to evaporate at that specific temperature.

How do you make a sling psychrometer?

Procedure

1. Moisten a double layer of gauze with water.
2. Use the rubber band to cover the bulb of one of the thermometers with the gauze.
3. Secure the thermometer with gauze on one side of the plastic bottle and the other thermometer to the opposite side, using multiple pieces of strapping tape.

Is a sling psychrometer accurate?

Sling Psychrometer. The Sling Psychrometer is an easy and affordable way to measure relative humidity levels quickly and accurately. The Sling Psychrometer measures RH between 10 and 100% (for dry bulb temperatures between 30 and 100 °F) with an accuracy of ± 5%. It is covered by a 1 year warranty.

Why is a sling psychrometer important?

sling psychrometer. An instrument used to measure the amount of water vapor or relative humidity in the air. It is a combination of wet- and dry-bulb thermometers mounted on a frame with a handle that allows it to be swung around to permit air to move across the psychrometer. See psychrometer.

How long do you swing a sling psychrometer?

After about 1 minute, stop and check the wet-bulb temperature, quickly reading it to the nearest 1/10 degree (if you stop too long, the temperature will start to change). Then continue swinging the psychrometer for another minute or so.

What is another name for a sling psychrometer?

hygrometer. (redirected from Sling psychrometer)

How does a thermometer work?

A thermometer has a glass tube sealed at both ends and is partly filled with a liquid like mercury or alcohol. As the temperature around the thermometer's bulb heats up, the liquid rises in the glass tube. When it is hot, the liquid inside the thermometer will expand and rise in the tube.

What is the meaning of sling psychrometer?

Definition of sling psychrometer. : a psychrometer that can be whirled in the air until the reading of the wet-bulb thermometer reaches a constant value.

What is the difference between a hygrometer and a psychrometer?

In reality there is no difference between them, a psychrometer is actually a type of hygrometer. A hygrometer is a device that is used to measure the moisture content of the air, basically this means the relative humidity and the dew point.

What's the dew point?

The dew point is the temperature to which air must be cooled to become saturated with water vapor. When the temperature is below the freezing point of water, the dew point is called the frost point, as frost is formed rather than dew. The measurement of the dew point is related to humidity.

What is the principle of a psychrometer?

(1) Principle of measurement At a lower humidity, water evaporates more actively, so that the wet-bulb temperature lowerssharply. The aspirated psychrometer measures humidity by measuring the difference between the dry-bulb temperature and wet-bulb temperature.

How do you make a psychrometer?

Procedure:

1. Wrap a strip of gauze around the base of the first thermometer several times.
2. Wrap a rubber band around the gauze to keep it in place.
3. Fill the jar with several inches of water.
4. Put the wrapped thermometer into the jar, making sure that the bulb is under the water.

How does a hygrometer work?

How do Hygrometers Work? This type of hygrometer uses two basic mercury thermometers, one with a wet bulb one with a dry bulb. Evaporation from the water on the wet bulb causes its temperature reading to drop, causing it to show a lower temperature than the dry bulb.

What is wet bulb depression?

Wet Bulb Depression: The wet bulb depression is the difference between the dry-bulb temperature(Air temperature) and the wet-bulb temperature. It is measured by a psychrometer . If there is 100% humidity, dry-bulb and wet-bulb temperatures are identical, making the wet-bulb depression equal to zero in such conditions.

Why is a psychrometer important?

It is a useful instrument to keep in the house. It measures the quantity of water vapor in the air or relative humidity. Information about the relative humidity is obliging in understanding the weather. A psychrometer is an instrument that counts both the wet-bulb and dry-bulb temperatures.

What is a thermometer used for?

Thermometers are used to see if you have a fever or tell you how cold it is outside. Made up of thermo (heat) and meter (measuring device), the meaning of the word thermometer is pretty straightforward. Thermometers measure temperatures in degrees, according to either the Celsius or Fahrenheit system.

How do you measure humidity?

A device to measure relative humidity is called a hygrometer. The simplest hygrometer - a sling psychrometer - consists of two thermometers mounted together with a handle attached on a chain. One thermometer is ordinary. The other has a cloth wick over its bulb and is called a wet-bulb thermometer.

How is Rh value calculated?

Divide actual vapor pressure by saturation vapor pressure and multiply by 100 to obtain a percentage using the formula Relative Humidity (percentage) = actual vapor pressure/saturated vapor pressure x100. The resulting number indicates relative humidity.

How do you find the dew point of a sling psychrometer?

Figure the difference between the dry bulb and wet bulb temperature. On Table 1, locate the column, which is headed with this temperature difference. Then locate the row labeled with the appropriate dry bulb temperature. The value at the intersection of the column and row gives the dew point.
