What are the different types of gear tooth profile?
What are the different types of gear tooth profile?

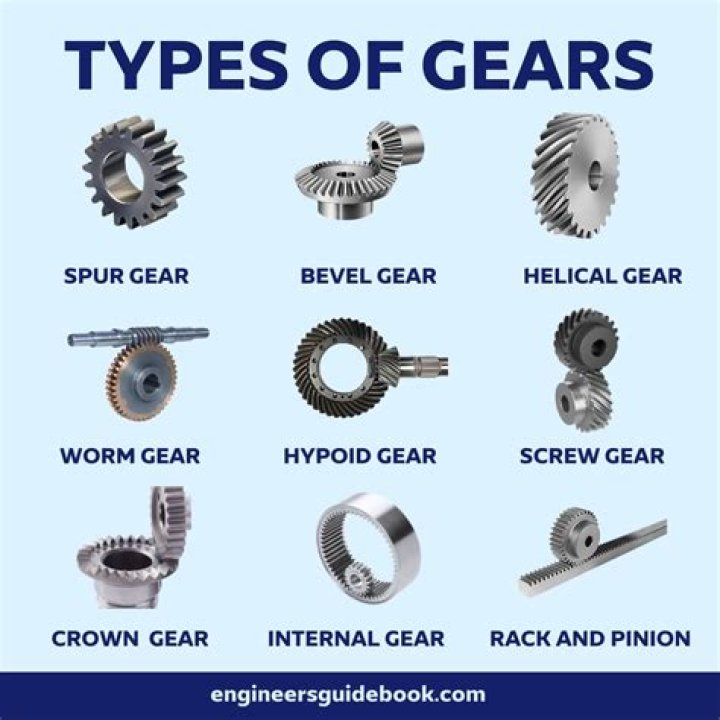

Types
- External versus internal gears.
- Spur.
- Helical.
- Double helical.
- Bevel.
- Spiral bevels.
- Hypoid.
- Crown.
What shape are gear teeth?
Gears generally have an involute curve tooth profile. There are other types of gear profiles, but they are mainly utilized in specialty applications such as cycloidal gears in clocks and watches. This involute curve helps the gears transmit power smoothly during the rolling action.
What is gear box and its types?
An industrial gearbox is an enclosed system that transmits mechanical energy to an output device. Gearboxes can modify their speed, torque, and other attributes to convert the energy into a useable format. Gearboxes are used in a variety of devices, for a broad range of purposes.
What is rack and pinion arrangement?
A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack), which operate to translate rotational motion into linear motion. Driving the rack linearly will cause the pinion to be driven into a rotation.
What are the 3 main types of gears?
There are three major categories of gears in accordance with the orientation of their axes. Configuration : Parallel Axes / Spur Gear, Helical Gear, Gear Rack, Internal Gear.
What is a gear classify different types of gears?
Gears are classified into 3 categories; parallel axes gears, intersecting axes gears, and nonparallel and nonintersecting axes gears. Spur gears and helical gears are parallel axes gears. Bevel gears are intersecting axes gears. Screw or crossed helical, worm gear and hypoid gears belong to the third category.
What is the difference between helical gear and spur gear?
A spur gear can be identified by its teeth. Teeth are projected radially and are parallel to the axis of the gear. The teeth of a spur gear are exactly perpendicular to its flat faces. The teeth on helical gears, however, are cut at an angle to the face of the gear.
What is stub tooth?
Definition of stub tooth : a short gear tooth of great strength with a large angle of obliquity.
What is a gear module?
“Module” is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.
What is a gear teeth?
Teeth: The teeth are the portion of the gear that makes contact with another gear. In order for two gears to mesh together the pitch must be the same for all mating pairs. The pitch of a gear is the distance between equivalent points of adjacent teeth.
