What is a statistically indeterminate system?
What is a statistically indeterminate system?
Statically indeterminate structures are structures that cannot be analyzed using statics, or equations of equilibrium only; they require other material properties. The degree of indeterminacy is the number of unknown reactions minus the number of equations of equilibrium.
What are statically determinate and indeterminate systems?
When all forces in a structure is determined from equilibrium equations, the structure is known as statically determinate. When the unknown forces in a structure are more than the available equilibrium equations, that structure is known as statically indeterminate structure.
How do you describe statically indeterminate members?
When the reactive forces or the internal resisting forces over a cross section exceed the number of independent equations of equilibrium, the structure is called statically indeterminate.
What are the methods of solving statically indeterminate?
Statically indeterminate structures are solved by the displacement method as if unknown displacements and rotations were chosen. From a system of equilibrium equations we calculate deformations from which internal forces and reactions are calculated.
How do you know if it is statistically determinate?
If the number of equations = the number of unknowns, then the structure is statically determinate. If, on the other hand, number of equations < the number of unknowns, the structure is statically indeterminate, and hence, other methods need to be used to analyze it.
How do you know if a structure is determinate?
A truss is considered statically determinate if all of its support reactions and member forces can be calculated using only the equations of static equilibrium. For a planar truss to be statically determinate, the number of members plus the number of support reactions must not exceed the number of joints times 2.
What is the difference between unstable and statically indeterminate?

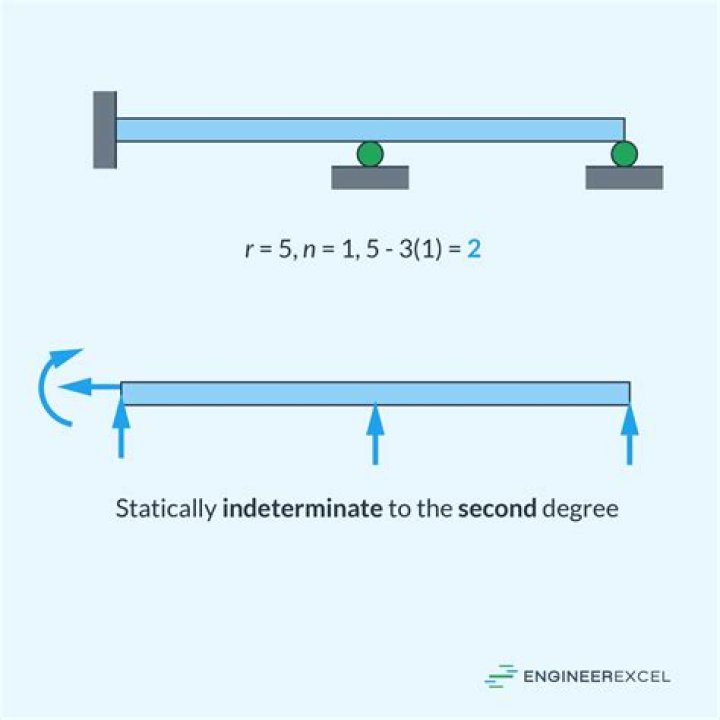

If the number of unknowns exceeds the number of equations, the structure is statically indeterminate. The degree of indeterminacy is equal to the number of unknowns minus the number of equations. When there are fewer reactions than there are equations, however, this makes the beam unstable.
How can you tell if something is determinate or indeterminate?
A statically determinate structure is one that is stable and all unknown reactive forces can be determined from the equations of equilibrium alone. A statically indeterminate structure is one that is stable but contains more unknown forces than available equations of equilibrium.
Which of the following is statically indeterminate?
Statically Indeterminate Structure: Those structures where all the member forces and support reactions cannot be evaluated using equations of static equilibrium only and need additional compatibility equations are called statically indeterminate structures. e.g. fixed beam, continuous beam 2-hinged arch.
Which of the following structures is statically indeterminate?
Does statically determinate mean stable?
What is determinate structure with example?
Example of determinate structures are : simply supported beams, cantilever beams, single and double overhanging beams, three hinged arches, etc. Redundant or indeterminate structures are not capable of being analysed by mere use of basic equilibrium equations.
