Airspeed indicator, instrument that measures the speed of an aircraft relative to the surrounding air, using the differential between the pressure of still air (static pressure) and that of moving air compressed by the craft's forward motion (ram pressure); as speed increases, the difference between these pressures.
Likewise, people ask, what do the colors on an airspeed indicator mean?
The airspeed indicator is color-coded to help the pilot immediately recognize the important airspeeds and ranges of airspeed. The color codes are: White Arc, Green Arc, Yellow Arc, Red Radial Line, and Blue Radial Line. White arc – The white arc is the flap operating speed. The bottom of this white arc is VS0.
what is the function of a airspeed indicator? Airspeed indicator, instrument that measures the speed of an aircraft relative to the surrounding air, using the differential between the pressure of still air (static pressure) and that of moving air compressed by the craft's forward motion (ram pressure); as speed increases, the difference between these pressures
Hereof, what are the airspeed indicator markings and what do they represent?
The white arc on airspeed indicators depicts the normal flap operating range. Inside of the white arc, full flaps can be used. The top of the white arc indicates the highest speed at which flaps can be extended during flight, and operating at speeds outside of the white arc with flaps down can be unsafe.
How does an attitude indicator work?
The Attitude Indicator shows rotation about both the longitudinal axis to indicate the degree of bank, and about the lateral axis to indicate pitch (nose up, level or nose down). Once powered up, the indicator is maintain in a fixed position no matter what the aircraft attitude may be.
Related Question Answers
Who invented the airspeed indicator?
Frank Short
How does the heading indicator work?
The heading indicator works using a gyroscope, tied by an erection mechanism to the aircraft yawing plane, i. e. the plane defined by the longitudinal and the transverse axis of the aircraft.What happens if static port is blocked?
A blocked static port will cause the altimeter to freeze at a constant value, the altitude at which the static port became blocked. The vertical speed indicator will read zero and will not change at all, even if vertical speed increases or decreases.What are the different types of airspeed?

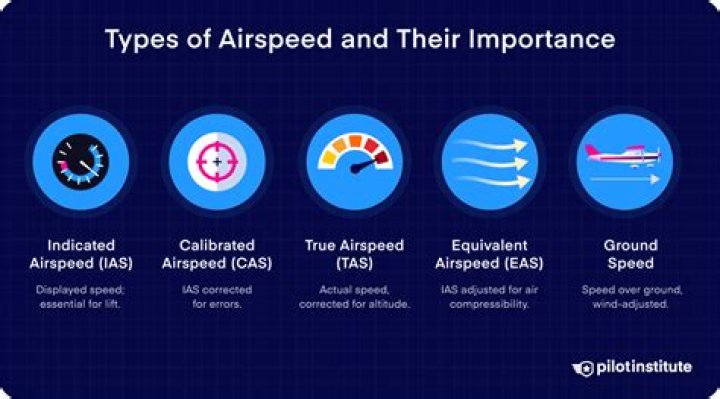

If you are thinking about becoming a professional pilot, you'll find understanding the four different types of airspeed to be interesting — and important to be a safe pilot. What are these types? Groundspeed, true airspeed, indicated airspeed (IAS), and calibrated airspeed (CAS).What is absolute altitude?
Absolute Altitude is height above ground level (AGL). It is primarily used in aircraft performance calculations and in high-altitude flight. • Density Altitude is formally defined as “pressure altitude corrected for nonstandard temperature variations.”What is Blue Line Multi engine?
In many light twins, which are typically used in multiengine flight training, an engine failure can reduce climb performance 80 percent or more. The first is the single-engine best rate of climb speed-VYSE. It's often called "blue line" because this speed is marked on the airspeed indicator with a blue radial line.What is the blue line on an airspeed indicator?
The radial red line near the bottom of green arc indicates Vmc, the minimum indicated airspeed at which the aircraft can be controlled with the critical engine inoperative. The radial blue line indicates VYSE, the speed for best rate of climb with the critical engine inoperative.What does a turn and bank indicator do?
turn and bank indicator, aircraft instrument containing one indicator to show turning, or rotation about the vertical axis, and another to show banking, or rotation about the longitudinal axis. The two indicators are essentially separate instruments, but they are customarily placed together.What does unstable vertical speed?
Normally when airplanes climb or descend they do so at a reasonably constant rate, say 1,500 feet per minute or so. An unstable vertical speed would be one that fluctuates rapidly, instead of remaining stable.What does the lower limit of the white arc on the airspeed indicator mean?
WHITE ARC—This is known as the flap operating range, or the speed at which the aircraft can be flown with full flaps. The lower limit represents VSO, the stalling speed or minimum steady flight speed in the landing configuration. The upper limit represents VFE, the maximum speed with the flaps extended.What is Kias speed?
KIAS - Knots Indicated Air Speed. KIAS (Knots Indicated Air Speed) is the speed reading from an aircraft's airspeed indicator. For navigational purposes, KIAS must be converted to CAS (Calibrated Air Speed), which can in turn be converted to TAS (True Air Speed).How is airspeed measured?
Airspeed is a measurement of the plane's speed relative to the air around it. The pitot (pronounced pee-toe) static tube system is an ingenious device used by airplanes and boats for measuring forward speed. When the airplane is standing still, the pressure in each tube is equal and the air speed indicator shows zero.What is VSO and vs1?
Vso is defined as the calibrated POWER-OFF stalling speed or the minimum steady flight speed at which an aircraft is controllable in the landing configuration. Vs1 is defined as the calibrated POWER-OFF stalling speed or the minimum steady flight speed at which the aircraft is controllable in a specified configuration.What are V speeds in aviation?
In aviation, V-speeds are standard terms used to define airspeeds important or useful to the operation of all aircraft. In general aviation aircraft, the most commonly used and most safety-critical airspeeds are displayed as color-coded arcs and lines located on the face of an aircraft's airspeed indicator.Why is indicated airspeed inaccurate at higher altitude?
As altitude changes, these speeds remain the same in indicated airspeed, even though the actual 'true' airspeed changes as altitude changes. Unless there is something wrong with the pitot-static system, such as a blockage, the airspeed indicator is VERY accurate. like, to within 1 or 2 knots.What does the pitot tube measure?
A pitot (/ˈpiːto?/ PEE-toh) tube, also known as pitot probe, is a flow measurement device used to measure fluid flow velocity. The pitot tube was invented by the French engineer Henri Pitot in the early 18th century and was modified to its modern form in the mid-19th century by French scientist Henry Darcy.How does ground effect work?
Ground effect (aerodynamics) For fixed-wing aircraft, ground effect is the increased lift and decreased aerodynamic drag that an aircraft's wings generate when they are close to a fixed surface. When landing, ground effect can give the pilot the feeling that the aircraft is "floating".What is the difference between TAS and IAS?
IAS is airspeed as measured by the aircraft's Airspeed Indicator (ASI). It is always less than TAS. The air is thinner at altitude, so the dynamic pressure will be less for the same airspeed, which means IAS will reduce as you climb, regardless of the rate of movement, while TAS will be consistent.How does a Mach meter work?
A machmeter is an instrument which provides an indication of the Mach Number, (M), which is the ratio between the aircraft true air speed (TAS) and the local speed of sound (LSS). Constant mach technique may be used to separate aircraft on the same track and at the same altitude whilst in a non radar environment.
