I answered them, Layer 2 VLAN is a single broadcast domain. It works on layer 2 (Datalink Layer). They can communicate only within it. And L3 VLAN is an Interface, that works on Network Layer. In order to do inter VLAN routing/ communication we need L3 interface (SVI)..
Keeping this in view, what is Layer 2 VLAN?
VLANs provide support for a Layer 2 trunk port. A Layer 2 trunk interface enables you to configure a single logical interface to represent multiple VLANs on a physical interface. You can configure a set of VLANs and VLAN identifiers that are automatically associated with one or more Layer 2 trunk interfaces.
Also Know, what are Layer 2 and Layer 3 devices? Overview. Traditional switching operates at layer 2 of the OSI model, where packets are sent to a specific switch port based on destination MAC addresses. Routing operates at layer 3, where packets are sent to a specific next-hop IP address, based on destination IP address.

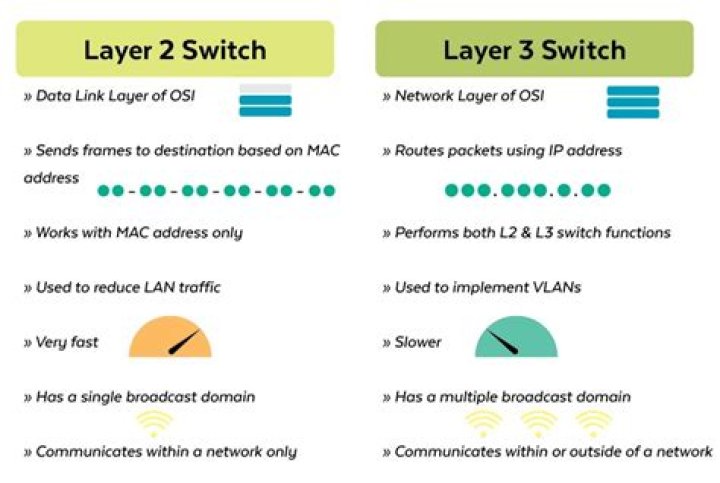

In this manner, what is the difference between Layer 2 and Layer 3 VLAN?
Layer 2 is generally hardware i.e. mac address "routing" or mac tables. Layer 3 has to do with ip's. Layer 3 devices are usually managed and they can create and route between vlans.
What is a Layer 3 switch used for?
Simply put, a layer 3 switch combines the functionality of a switch and a router. It acts as a switch to connect devices that are on the same subnet or virtual LAN at lightning speeds and has IP routing intelligence built into it to double up as a router.
Related Question Answers
Is VLAN a Layer 3?
VLANs are data link layer (OSI layer 2) constructs, analogous to Internet Protocol (IP) subnets, which are network layer (OSI layer 3) constructs.What is a Layer 2 protocol?
Layer 2, also known as the Data Link Layer, is the second level in the seven-layer OSI reference model for network protocol design. A frame is a protocol data unit, the smallest unit of bits on a Layer 2 network. Frames are transmitted to and received from devices on the same local area network (LAN).Is a Layer 2 switch managed?
Answer: A Layer 2 managed switch forwards traffic between network hosts such as a server and a client PC within the same subnet. The traffic-forwarding decision is based on its MAC address table entries.What is a Layer 2 device?
Layer 2 defines how data is formatted for transmission and how access to the physical media is controlled. These devices also provide an interface between the Layer 2 device and the physical media. Some common examples are a NIC installed in a host, bridge, or switch. Layer 3 Devices and Their Functions.What is VLAN range?
1.1) Different Cisco Catalyst switches support various numbers of VLANs. The number of supported VLANs is large enough to accommodate the needs of most organizations. Normal range VLANs on these switches are numbered 1 to 1005 and extended range VLANs are numbered 1006 to 4094.What is a Layer 3 device?
A Layer 3 switch is a high-performance device for network routing. A router works with IP addresses at layer 3 of the model. Layer 3 networks are built to run on on layer 2 networks. In an IP layer 3 network, the IP portion of the datagram has to be read.What OSI layer is a router?
Routers operate on the third layer of the OSI Model, the Network-Control Layer. Rather than passing packets based on the Media Access Control (MAC) Layer addresses (as bridges do), a router examines the packet's data structure and determines whether or not to forward it.What is VLAN example?
A few examples of what VLANs can be used for: To separate network management traffic from end-user or server traffic. To isolate sensitive infrastructure, services, and hosts such as corporate users from guest users. To prioritize or implement Quality of Service (QoS) rules for specific services, such as VoIP Phones.What is a Layer 2 switch used for?
A layer 2 switch is a type of network switch or device that works on the data link layer (OSI Layer 2) and utilizes MAC Address to determine the path through where the frames are to be forwarded. It uses hardware based switching techniques to connect and transmit data in a local area network (LAN).Is a switch layer 2 or 3?
– Switching operates at Layer 2 of the OSI Reference Model, where data packets are redirected to a destination port based on MAC addresses. So Layer 2 switches simple do switching. A Layer 3 switch, on the other hand, is a specialized hardware device used for routing data packets using IP addresses.Are routers Layer 2 or 3?
Generally speaking, Layer 2 is a broadcast Media Access Control (MAC) MAC level network, while Layer 3 is a segmented routing over internet protocol (IP) network. To better understand both layers, let's dig a little deeper into the OSI model.What is default gateway IP?
In the networking world, a default gateway is an IP address that traffic gets sent to when it's bound for a destination outside the current network. On most home and small business networks—where you have a single router and several connected devices—the router's private IP address is the default gateway.Is a hub a Layer 2 device?
They are a layer 2 device – they also transmit based on MAC-adresses – like switches. Hubs unlike switches do not have any intelligence and do not process packets in any way. They just send all the data received on the hub out to all the other active ports on the hub with the exception of the incoming port.What is a layer 1 switch?
A physical layer switch, or Layer 1(L1) switch, operates at the physical layer of the OSI (Open System Interconnection) model. The easiest way to think of a Layer 1 switch is an an electronic, programmable patch panel. It simply establishes the physical connection between ports.What is l2 switch?
Layer 2 switching (or Data Link layer switching) is the process of using devices' MAC addresses on a LAN to segment a network. Switches and bridges are used for Layer 2 switching. They break up one large collision domain into multiple smaller ones. Each port on a switch is a separate collision domain.Can a Layer 2 switch route VLANs?
Layer 2 switches can only route packets between different subnets or VLANs if the two MAC addresses are both PHYSICALLY connected to the layer 2 switch and.Can you have broadcasts at the layer 2 level?
You can have broadcasts at Layer 2. ARP will use broadcasts to find MAC address information. The broadcast address is FF. Security measures can be applied at Layer 2, so knowledge of allowable MAC addresses is needed.What is FF FF FF FF FF FF?
The layer 2 broadcast address ff:ff:ff:ff:ff:ff is used on ethernet frames and is supposedly broadcasted on all equipments. 255.255. 255.255 is the layer 3 address that is used to adress the exact same hosts.What is a Layer 2 firewall?
Layer 2 Transparent Firewall Support A traditional zone-based firewall acts like a Layer 3 node in a network, and inspects the IP traffic that passes through the node. The traditional firewall is a routed hop and acts as a default gateway for hosts that connect to one of its screened subnets.
