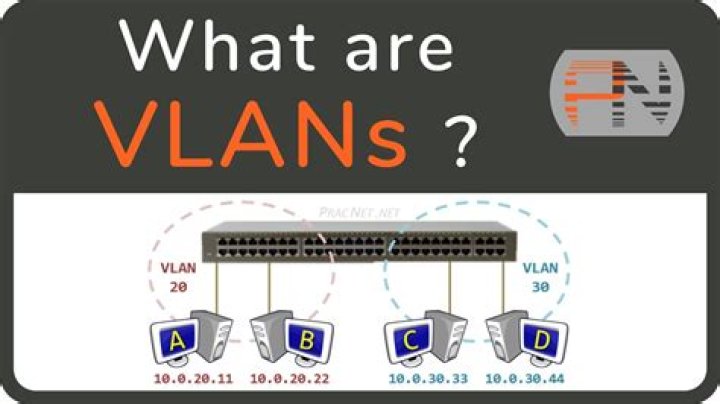

What is meant by VLAN?

A virtual LAN (VLAN) is any broadcast domain that is partitioned and isolated in a computer network at the data link layer (OSI layer 2). LAN is the abbreviation for local area network and in this context virtual refers to a physical object recreated and altered by additional logic.

Similarly one may ask, what is VLAN how it works?

A VLAN is a set of end stations and the switch ports that connect them. Like a bridge, a VLAN switch forwards traffic based on the Layer 2 header, which is fast. Like a router, it partitions the network into logical segments, which provides better administration, security, and management of multicast traffic.

Similarly, what is the benefit of VLAN? VLANs provide a number of advantages, such as ease of administration, confinement of broadcast domains, reduced broadcast traffic, and enforcement of security policies. VLANs provide the following advantages: VLANs enable logical grouping of end-stations that are physically dispersed on a network.

Regarding this, what is VLAN in simple words?

VLAN. Stands for "Virtual Local Area Network," or "Virtual LAN." A VLAN is a custom network created from one or more existing LANs. It enables groups of devices from multiple networks (both wired and wireless) to be combined into a single logical network.

What is VLAN example?

A few examples of what VLANs can be used for: To separate network management traffic from end-user or server traffic. To isolate sensitive infrastructure, services, and hosts such as corporate users from guest users. To prioritize or implement Quality of Service (QoS) rules for specific services, such as VoIP Phones.

How VLAN is created?

You can create a VLAN using most switches simply by logging into the switch via Telnet and entering the parameters for the VLAN (name, domain and port assignments). After you have created the VLAN, any network segments connected to the assigned ports will become part of that VLAN.

What is VLAN and its purpose?

A virtual local area network (VLAN) is a logical group of workstations, servers and network devices that appear to be on the same LAN despite their geographical distribution. The purpose of implementing a VLAN is to improve the performance of a network or apply appropriate security features.

What is the VLAN IP address?

VLANs do not really have IP addresses assigned to them. They have a network assigned to them, or a subnet, or a network range, however you want to refer to it. The address the OP supplied us is an assignable address within the range of 192.168. 4.1-255.

How do I find my VLAN?

To find your VLAN (on a Windows XP machine), go to "Start Menu",then click the return (enter) key on your keyboard. This runs a command prompt. Type in "ipconfig" and hit return again. You will see your IP Address, your Subnet Mask and your Default Gateway.

How are VLANs created?

In technical terms, a VLAN is a broadcast domain created by switches. Normally, it is a router creating that broadcast domain. With VLAN's, a switch can create the broadcast domain. This works by, you, the administrator, putting some switch ports in a VLAN other than 1, the default VLAN.

How many types of VLAN are there?

VLAN Types Most VLANs will be one of five main types, depending on their purpose: Management VLAN: A best practice is to set up a separate VLAN for management traffic like monitoring, system logging, SNMP, and other potentially sensitive management tasks.

What is VLAN range?

1.1) Different Cisco Catalyst switches support various numbers of VLANs. The number of supported VLANs is large enough to accommodate the needs of most organizations. Normal range VLANs on these switches are numbered 1 to 1005 and extended range VLANs are numbered 1006 to 4094.

What do u mean by routing?

Routing is the process of selecting a path for traffic in a network or between or across multiple networks. Packet forwarding is the transit of network packets from one network interface to another. Intermediate nodes are typically network hardware devices such as routers, gateways, firewalls, or switches.

What is the difference between LAN and VLAN?

The main difference between LAN (Local Area Network) and VLAN (Virtual Local Area Network) is that LAN work on single broadcast domain on the other hand VLAN works on multiple broadcast domain and In local are network, the Packet is advertised to each device while In virtual local are network, packet is send to

What is trunk port?

A trunk port is a port that is assigned to carry traffic for all the VLANs that are accessible by a specific switch, a process known as trunking. Trunk ports mark frames with unique identifying tags – either 802.1Q tags or Inter-Switch Link (ISL) tags – as they move between switches.

What are three advantages of VLANs?

VLANs provide the following advantages: * (E) VLANs enable logical grouping of end-stations that are physically dispersed on a network. … * VLANs reduce the need to have routers deployed on a network to contain broadcast traffic. … * (C) Confinement of broadcast domains on a network significantly reduces traffic.

What is VLAN on router?

Routers connect LANs, routing the traffic to each appropriate port. A virtual LAN (VLAN) is a local area network that maps devices on a basis other than geographic location, for example, by department, type of user, or primary application.

Does VLAN improve performance?

VLANs improve network performance by separating large broadcast domains into smaller ones. If a device in one VLAN sends a broadcast Ethernet frame, all devices in the VLAN receive the frame, but devices in other VLANs do not.

Are VLANs secure?

VLANs support the logical grouping of network devices, reduce broadcast traffic and allow more control when implementing security policies. How do VLANs provide security? VLANs limit the ability for any device to hear anything on other Virtual Local Area Networks.

What is VLAN membership?

VLAN Membership. A virtual LAN (VLAN) is an administratively defined broadcast domain logically segmented by function, team, or application that enhances performance by limiting traffic to stations in the same VLAN; traffic to other VLANs is blocked.

How do you implement a VLAN?

To create VLAN interfaces:

Determine the IP addresses that you want to assign to the VLAN interfaces on the switch.
Open a web browser.
In the browser address field, type the IP address of the smart switch.
Type the password in the Password field.
Click the Login button.
Select Routing>IP>IP Configuration.
