What is mechanical runout?

What is mechanical runout?

An error in the measurement of a shaft’s centerline position with a displacement probe, that results from a combination of out-of-roundness, a shaft bow, and surface imperfections.

What does run out mean in machining?

Run out is differences or variations in the diameter of a cutting tool at certain points along the outside edge while the tool is rotating. When an end mill is in rotation it is important that each tooth hits at the exact same spot along the work piece.

What is run out in shaft?

Radial shaft runout is a measurement of radial displacement of the shaft surface as the shaft turns. Assuming a round shaft, contributing factors to radial runout include shaft straightness, drive/shaft alignment, bearing stiffness, and increasing runout as the bearings wear.

What is electrical runout and mechanical runout?

Mechanical Runout is a measure of the shaft’s deviation from a perfectly uniform radius as its circumference is traversed. This type of runout can be measured by a dial indicator. Electrical Runout is a measure of a shaft’s electrical property variations as its circumference is traversed.

What is total runout?

Total Runout is how much one entire feature or surface varies with respect to a datum when the part is rotated 360° around the datum axis. Total runout controls both the amount of variation in the surface as the part is rotated, but the amount of variation in the axial dimension.

What is run out in GD?

Run-out tolerance is a geometric tolerance that specifies the run-out fluctuation of a target’s feature when the target (part) is rotated on an axis (specified straight line). A datum is always necessary to indicate run-out tolerance; as such, it is a geometric tolerance for features related to datums. Circular Run-out.

How is runout calculated?

Total Runout is measured by fixing the datum features (typically an axis) and rotating the part along the rotational axis. Another method for measuring total runout is to take one gauge held perpendicular to the surface of the part, and slowly move it across the surface of the part axially as the part is rotated.

What is runout and total runout?

The Difference Between Circular Runout and Total Runout. Circular runout controls only a particular circular cross section of a part, while total runout controls the entire surface of the part.

What is runout measurement?

Runout is measured using a simple height gauge on the reference surface. The part is then rotated around this axis and the variation is measured using the height gauge held perpendicular to the part surface. As long as the gauge does not vary by more than the runout tolerance, the part is in spec.

How do you calculate runout?

Arun Kumar

1. As Explained in this web, Total Runout = Concentricity + Cylindricity.
2. To measure Total run out, with reference to datum, Whether we have to move the measure gauge in the same axis ( i.e., in straight line) , or we can vary the measurement axis.

What is the difference between electelectrical and mechanical runout?

Electrical Runout is measured with an Eddy Current Sensor similar to that made by Bently Nevada. As an option, you can choose a Bently probe, or a B&K Vibro IN-085. The Mechanical Runout is measured with an LVDT probe.

What is run-out and how is It measured?

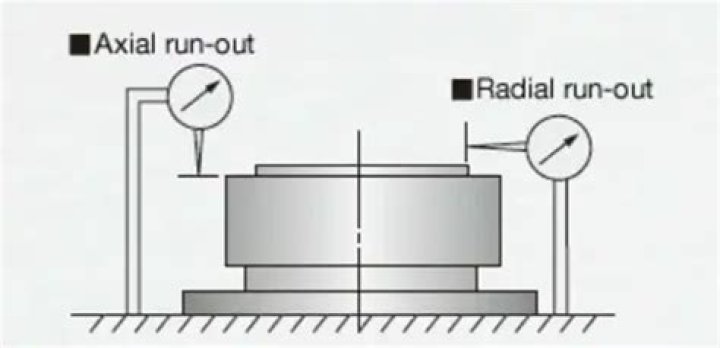

Run-out has two main forms: Radial run-out is caused by the tool or component being rotated off centre, i.e. the tool or component axis does not correspond with the main axis. Radial run-out will measure the same all along the main axis.

What are the different forms of run-out?

Run-out has two main forms: 1 Radial run-out is caused by the tool or component being rotated off centre, i.e. the tool or component axis does not… 2 Axial run-out is caused by the tool or component being at an angle to the axis. Axial run-out causes the tip of the tool… More

What is the difference between run out and axial run out?

Run-out. Axial run-out causes the tip of the tool (or shaft) to rotate off centre relative to the base. Axial run-out will vary according to how far from the base it is measured. In addition, irregular run-out is the result of worn or rough bearings which can manifest itself as either axial or radial run-out.
