What is the dominant mode in a rectangular waveguide?

TE10

.

Similarly, it is asked, how do you find dominant mode in rectangular waveguide?

The dominant mode in a particular waveguide is the mode having the lowest cutoff frequency. For rectangular waveguide this is the TE₁₀ mode.

Furthermore, what is dominant mode and degenerate mode? Resonant Cavity: Like waveguides, different modes having the same resonant frequency are called degenerate modes.TM_mnp and TE_mnp are always degenerate if none of the mode indices is zero. The mode with lowest resonant frequency for a given cavity size is referred as the dominant mode.

Similarly, why te10 mode is dominant in rectangular waveguide?

Signals can progress along a waveguide using a number of modes. However the dominant mode is the one that has the lowest cut-off frequency. For a rectangular waveguide, this is the TE10 mode. The TE means transverse electric and indicates that the electric field is transverse to the direction of propagation.

Which is the dominant and most widely used mode of waveguide operation?

Popular Answers (1) Particularly, for rectangular waveguides, the TE10 mode has the lowest cutoff frequency and so, called the dominant mode. All other modes have higher cutoff frequencies (except, in the case of the square cross-section for which TE01 has the same cutoff frequency).

Related Question Answers

What are the types of waveguide?

There are five types of waveguides.

• Rectangular waveguide.
• Circular waveguide.
• Elliptical waveguide.
• Single-ridged waveguide.
• Double-ridged waveguide.

What is meant by dominant mode in waveguide?

dominant mode: In a waveguide that can support more than one propagation mode, the mode that propagates with the minimum degradation, i.e. , the mode with the lowest cutoff frequency. (188) Note: Designations for the dominant mode are TE10 for rectangular waveguides and TE11 for circular waveguides.

What is a rectangular waveguide?

A rectangular waveguide is a hollow metallic tube with a rectangular cross section. The conducting walls of the waveguide confine the electromagnetic fields and thereby guide the electromagnetic wave. The rectangular waveguide is basically characterized by its dimensions i.e., length a and breadth b.

What is cut off frequency of waveguide?

Waveguides. The cutoff frequency of an electromagnetic waveguide is the lowest frequency for which a mode will propagate in it. In fiber optics, it is more common to consider the cutoff wavelength, the maximum wavelength that will propagate in an optical fiber or waveguide.

What is evanescent mode in waveguide?

Evanescent modes are modes below the cutoff frequency. They cannot propagate down the waveguide for any distance, dying away exponentially. However, they are important in the functioning of certain filter components such as irises and posts, described later, because energy is stored in the evanescent wave fields.

Why tm01 or tm10 mode is not possible in rectangular waveguide?

Show that the TM01 and TM10 modes in a rectangular waveguide do not exist. TM mode expression for various field components are: From above expressions it can be seen that all field component vanishes when either m or n is put zero. This gives that TM01 and TM10 modes in a rectangular waveguide do not exist.

Why can't TEM mode propagate in rectangular waveguide?

TEM mode is characterised by electric fields and magnetic fields perpendicular to one another and perpendicular to the direction of propagation. Since such a current source is absent and waveguide being a single conductor configuration, TEM mode cannot exist inside a waveguide.

How does a waveguide work?

A waveguide is a structure that guides waves, such as electromagnetic waves or sound, with minimal loss of energy by restricting the transmission of energy to one direction. The original and most common meaning is a hollow conductive metal pipe used to carry high frequency radio waves, particularly microwaves.

What is the mode in waveguide?

The longitudinal mode of a waveguide is a particular standing wave pattern formed by waves confined in the cavity. The transverse modes are classified into different types: TEM modes (transverse electromagnetic) have no electric nor magnetic field in the direction of propagation.

Why waveguide is a high pass filter?

The waveguide acts as a high pass filter in that most of the energy above a certain frequency (the cutoff frequency) will pass through the waveguide, whereas most of the energy that is below the cutoff frequency will be attenuated by the waveguide.

What is te11 mode?

TE11 mode vs TM11 mode N= number of half-wave along the shorter side. Hence in a TE11 mode, there exists one half wave of E field in both the broader and shorter dimension. Hence in a TM11 mode, there exists one half wave of H field in both the broader and shorter dimension.

Which TM mode in rectangular waveguide has lowest cutoff frequency?

Rectangular Waveguide Cutoff Frequency The TE₁₀ mode is the dominant mode of a rectangular waveguide with a>b, since it has the lowest attenuation of all modes. Either m or n can be zero, but not both. For TM modes, m=0 and n=0 are not possible, thus, TM₁₁ is the lowest possible TM mode.

What is guided wavelength?

Guide wavelength is defined as the distance between two equal phase planes along the waveguide. The guide wavelength is a function of operating wavelength (or frequency) and the lower cutoff wavelength, and is always longer than the wavelength would be in free-space.

What is group velocity in a waveguide?

Group Velocity. It is the velocity of electromagnetic waves in the waveguide. Group velocity is denoted by the symbol Vg. Group velocity is less than velocity of electromagnetic waves in free space.

What are waveguides made of?

Typically waveguide is made of brass, copper, silver, aluminum, or any metal that has low bulk resistivity. It is possible to use metals with poor conductivity characteristics, if the interior walls are properly plated. It is even possible to make plastic waveguide!

Why are waveguides pressurized?

Microwave band waveguides are pressurised for long runs to reduce moisture build up inside the waveguide. Waveguides aren't perfectly gas-tight, so the scrubbed air at higher than atmospheric pressure prevents ambient moisture-laden air from seeping into the waveguide cavity.

What is TEM mode in waveguide?

Wave travel along a standard, two-conductor transmission line is of the TEM (Transverse Electric and Magnetic) mode, where both fields are oriented perpendicular to the direction of travel. TEM mode is only possible with two conductors and cannot exist in a waveguide.

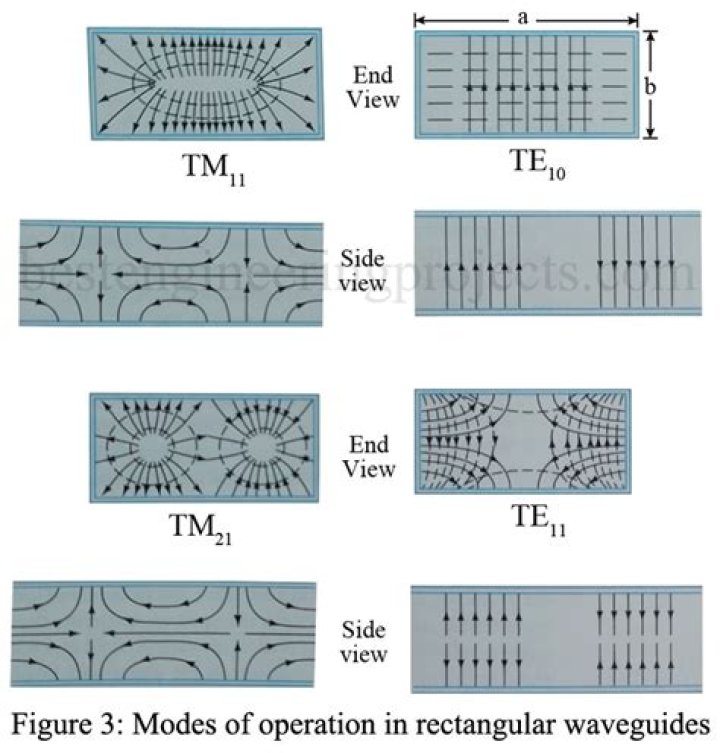

What is te10 mode in rectangular waveguide?

It is possible to propagate several modes of electromagnetic waves within a waveguide. The physical dimensions of a waveguide determine the cutoff frequency for each mode. The dominant mode in a particular waveguide is the mode having the lowest cutoff frequency. For rectangular waveguide this is the TE₁₀ mode.
