What is waste water pipe?
A waste pipe is often a smaller diameter pipe that carries waste water from your sinks, washing machine, shower, bath and any other appliance you may have that uses water. It can be narrower than a soil pipe as the waste pipe is only designed to carry water.
.
Similarly one may ask, what is waste pipe in plumbing?
Waste Pipes are installed to carry water and other liquids away from your home, usually the materials that are flushed down the drain from your bathroom or kitchen. To contrast, the Soil Pipes don't carry water and liquids, they carry soiled waste from the toilet or urinal.
Beside above, how does a toilet waste pipe work? At first sight, toilets seem quite simple: you have a waste pipe going through the floor and a tank of water up above (called a cistern) waiting to flush into it when someone pushes a button or pulls a lever or a chain. The cistern (upper tank of water) drains through a valve in the center through the force of gravity.
Keeping this in consideration, what size is waste pipe?
Plastic waste pipe is available in 4 basic sizes (external diameter) for different plumbing uses: 21.5mm - for overflows such as cold water tank, cisterns etc. 32mm - for hand basin waste pipe. 40mm - for sink and bath waste pipe.

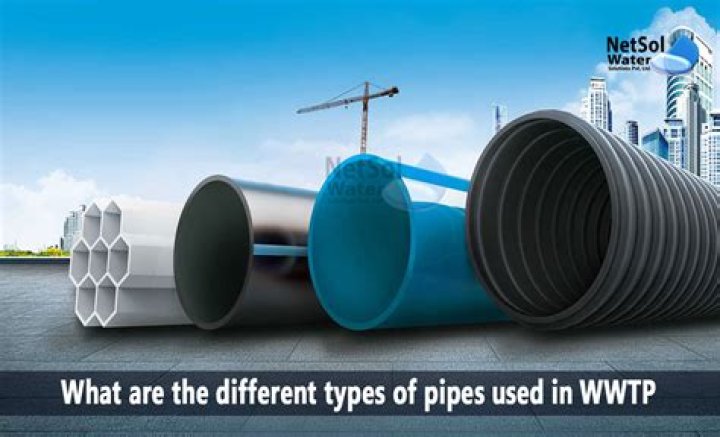

What are the different types of pipes?
Different Types of Pipes.
- Cast Iron Pipe:
- Galvanized Iron Pipe (G.I).
- Wrought Iron Pipe.
- Steel Pipe.
- Copper Pipe.
- Plastic Pipe.
- Asbestos Cement Pipe.
- Concrete Pipe.
Can a toilet and shower share the same drain?
Your shower drain can connect to the toilet drain, but it cannot connect to the toilet trap arm. So if your "main drain connection" is also the vent for the toilet, the line from the closet flange to the main drain connection is trap arm and the answer is no, the shower cannot tie in here.What is a gully trap?
A gully trap is a basin in the ground which receives piped wastewater from inside your home before it is emptied into the wastewater network. The basin has a water seal to prevent foul odours of the sewer reaching the surface, and a vent pipe that allows fresh air in.What is a stink pipe?
A “Stink Pipe”, as crude a term as you might think it may be, is a term used quite often in the construction trades to describe the pipe that vents out your home's sewer gasses through your roof.Can washing machine waste go into soil pipe?
Both soil and waste pipes will run from your toilet, sinks, shower, washing machine, urinal, bidet and any appliance that voids water and join the soil stack. The stack will run directly into your underground drain. Using the right pipe is critical, especially for soiled water.Where is soil pipe?
A soil vent pipe commonly runs vertically from the underground drainage system to the top of a property, just above roof gutter level. It is also known as a soil stack pipe, a drain waste vent or a ventilated discharge pipe. Soil vent pipes can be installed inside structures.What's a stack pipe?
The stack is the largest vertical pipe into which all the horizontal (and smaller vertical) pipes either drain or vent. The UPC defines a "stack" as "The vertical main of a system of soil, waste, or vent piping extending through one or more stories." (Uniform Plumbing Code, definitions).Does every drain need a vent?
Every fixture is required to have an internal or external trap; double trapping is prohibited by plumbing codes due to its susceptibility to clogging. Every plumbing fixture must also have an attached vent. The top of stacks must be vented too, via a stack vent, which is sometimes called a stink pipe.Is pipe diameter internal or external?
In short: Tube is measured by outside diameter, pipe is measured by inside diameter. There is often confusion as to which size die the customer actually needs - Pipe Size or Tubing Size. Keep in mind that pipe size refers to a nominal - not actual - inside pipe diameter. Schedule refers to the pipe's wall thickness.How is waste pipe size measured?
Find the outside diameter of your pipe to the nearest millimetre, use a tape measure or vernier gauge. Then find this size down the left hand column, read across the four coloured columns on the right to find the group and description for your size pipe.How is pipe size measured?
Measure the Outside Diameter (OD) of your pipe or pipe fitting:- Wrap a string around the pipe.
- Mark the point where the string touches together.
- Use a ruler or measuring tape to find the length between the tip of the string and the mark you made (circumference)
- Divide the circumference by 3.14159.
