Where are single acting hydraulic cylinders used?

Where are single acting hydraulic cylinders used?

Single-acting hydraulic cylinders can be used on any type of machinery, but they are commonly used on mobile pieces of machinery including dump trucks and excavators.

What is a plunger cylinder?

A hydraulic cylinder without a piston or with a piston without seals is called a plunger cylinder. A plunger cylinder can only be used as a pushing cylinder; the maximum force is piston rod area multiplied by pressure. This means that a plunger cylinder in general has a relatively thick piston rod.

How does a single acting cylinder work?

A single acting cylinder works with compressed air to actuate the piston in one direction and spring force to return to the base position. Work can be performed in the air driven direction. The cylinder has one port that is used to both supply and vent compressed air.

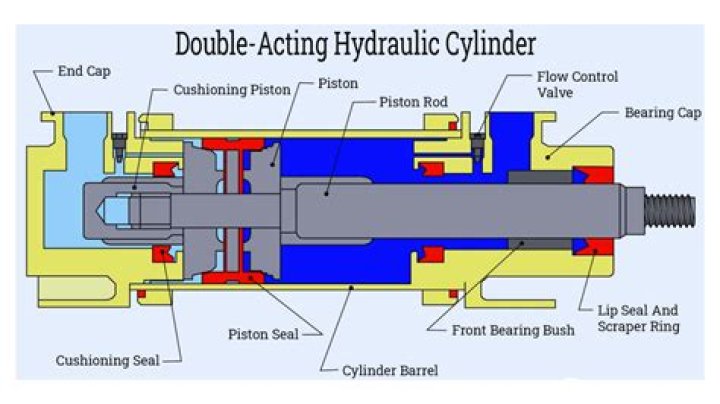

What is the difference between a single acting and a double acting hydraulic cylinder?

A single-acting hydraulic cylinder includes just one port. This is where the hydraulic fluid enters and forces the plunger out in one direction. A double-acting cylinder includes two ports. One for the hydraulic fluid to enter and extend the plunger, and the other for retracting the cylinder.

What is advantage of single acting cylinder?

Advantages of Single Acting Cylinder: Simple design; easy to install. Low cost of initial purchase. Single port and small housing. Reduction in valve and piping cost compared to double acting cylinders.

Which is better single acting cylinders or double acting cylinders?

If the heavy lifting, so to speak, is only in one direction, a single acting hydraulic or pneumatic cylinder may be your best bet. If you are moving a part in two directions and need to have full control, it’s best to have a double acting hydraulic or pneumatic cylinder.

What is the advantage of using single acting cylinder?

Energy-saving. The piston will always return to its starting point. Less hydraulic fluid needed. Rugged & reliable.

What is advantage of using a single acting cylinder?

Consumes less air – because air is used in one direction only, there is less consumption compared to a double acting cylinder; this gives optimum efficiency and lower operating cost.

Where are single acting actuators used?

Single acting actuators are common in low to moderate cycle applications where the valve failing in the wrong position could present a serious safety hazard and/or cause damage to nearby equipment. If power or air pressure is lost, single-acting actuators ensure that the valve will fail to the normal position.

What is the advantage of single acting cylinder to double acting?

A double hydraulic cylinder obviously contains more fluid than a single cylinder. This makes it easier to operate machinery with a double cylinder, and also makes it easier to control the movement of the system attached to the hydraulic cylinder. A single cylinder outputs force in one direction only.
