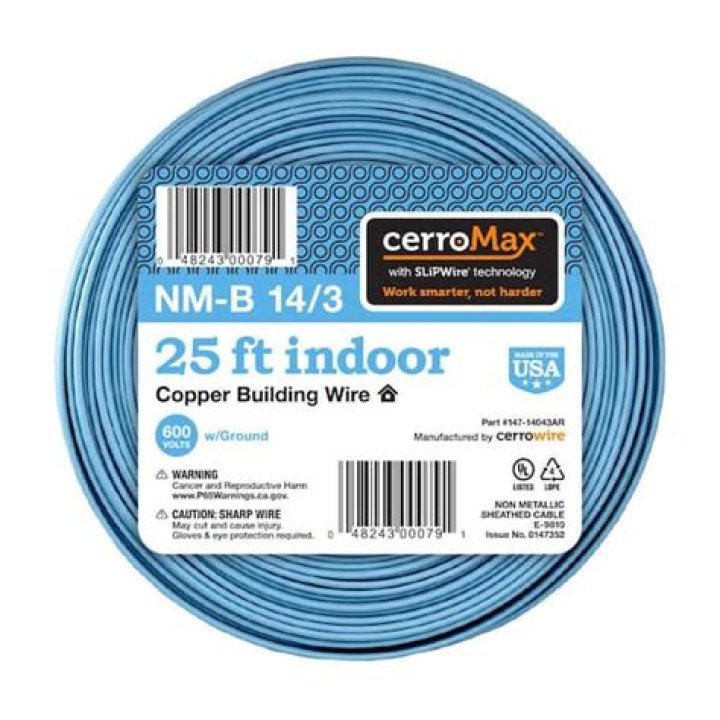

Can nm b wire be used outdoors?
Under the 2008 code, you must use UF cable anytime NM-style cable (even in conduit) exits the side of the house. That is, you are no longer allowed to put NM-B cable in watertight conduit outside of the house in wet locations.
.
Keeping this in consideration, can Romex be used outdoors?
“Romex” (NM) does not belong in conduit, and it is not allowed for use in damp/wet locations. So the answer to your question is “no,” but this wiring method is improper for exterior lighting. So the answer to your question is “no,” but this wiring method is improper for exterior lighting.
Subsequently, question is, what type of wire should be used outdoors? Type UF cable is the most commonly used nonmetallic cable for residential outdoor wiring runs. UF cable can be direct-buried (without conduit) with a minimum of 24 inches of earth cover.
Accordingly, can nm B WIRE be put in conduit?
While the National Electrical Code does not expressly forbid inserting NM cable inside conduit, in practice, it is very difficult to do so, and very few professional electricians will do such an installation. THHN wires are relatively inexpensive and are much easier to run through conduit.
What does NM B Wire mean?
Non-Metallic
Related Question AnswersDoes outdoor wire need conduit?
You can run electrical wire outside to nearly any location. Although some types of electrical cable do not have to be enclosed in conduit for outside installation, enclosing any exposed cable is a good idea. Schedule 40 polyvinyl chloride (PVC) conduit for electricity is gray and is rated for sunlight resistance.Does outdoor Romex have to be in conduit?
No. Romex+outside in conduit= wet location. Conduit which is not subject to any weather would be OK, but very few outdoor locations fit that description. The bottom line is this: if you could use NM there without conduit, then you could sleeve it in conduit.Can you run solid wire in conduit?
Anything in EMT/Conduit is stranded but most other work is solid wire. I do however like to use Ideal Pigtails for most connections as they are 12ga stranded copper with a forked connector so the connections can be pushed into the back of the box and there is less stress on the device.Can you run indoor wire outside in conduit?
Under the 2008 code, you must use UF cable anytime NM-style cable (even in conduit) exits the side of the house. That is, you are no longer allowed to put NM-B cable in watertight conduit outside of the house in wet locations.Can Romex be buried without conduit?
Old_Town Well-Known Member. There really is no need to run "romex" of type UF sheathed cable inside of conduit. Type THHN single conductor wire is designed to be pulled in conduit, not multiconductor sets. Running romex or UF in pipe is a complete waste of time and money.Can I strip Romex and run in conduit?
The most common type of cable used in home wiring is non-metallic (NM), or Romex, cable. While NM cable can be run inside conduit, this is seldom done. They are similar to the wires you see when you strip the outer sheathing off of NM cable.What kind of wire can be buried?
The most common types of direct burial cable used in residential projects are underground service entrance (USE) and underground feeder (UF). Type USE cable is usually black and is most often used for buried lines that bring power from the utility's transformer to individual houses.Can you run 2 wires in conduit?
Run 2 more wires up the conduit - two for LINE, two for LOAD. Tape them creatively to distinguish them. The simple answer to your question is yes according to NEC Article 334.15 (B), but it may be a little more complicated than that. First the conductors must be rated for wet location.Can you run bare ground wire in PVC conduit?
Running bare ground inside the PVC conduit is fine. Inside is better than outside in case you ever need to service it or if your demand out there increases pulling larger conductors and a larger ground. In 1-1/4" sch 40 PVC you're permitted up to four #4 wires, and this gauge will get you 100 amps.What size wire do I need for a 100 amp sub panel?
A 100 A sub-panel requires a two-pole 100 A breaker - if you want 100 A. You can use #4 AWG 75 deg C or 90 Deg C copper wire in conduit for a 100 A breaker provided the breaker is labeled for use with 75 deg C wire.Can Romex be exposed?
Re: Exposed romex NM cable is permitted to be run exposed on the surface of the building finish. If subject to physical damage then it requires supplemental protection. The term subject to physical damage is not defined by the NEC so it becomes an interpretative issue.Can Schedule 40 PVC be used for electrical conduit?
1.2 Schedule 40 and 80 conduit and fittings Schedule 40 rigid PVC conduit, elbows, that are specifically marked for underground use are suitable for use underground only by direct burial or encasement in concrete. The UL listing says both 80 and 40 can be used in both above and underground installations.What is the difference between Thhn and NM B?
THHN stands for 'Thermoplastic Insulation High Heat-Resistant Nylon Jacket'. THHN is a multi-purpose building wire. It is used as a conductor in several cable assemblies, including NM-B, UF-B, and MC. It's available in both solid and stranded copper conductors and in a variety of colors.Can Romex be exposed in garage?
i.e. Romex type wire stapled to studs and then traveling to light switch without benefit of conduit. I personally note in my reports exposed romex wiring in garage that is 7 ' or less and recommend that all electrical wiring is run inside of a conduit or behind wall to shield the wiring from accidental impact.How do you run electrical wire under concrete?
How to Run Electrical Wire Under Concrete- Select a pipe of sufficient diameter for the desired excavation width.
- Dig a small trench on each side of the concrete slab.
- Measure the width of the concrete slab.
- Push the angled end of the PVC pipe into the soil in the trench on one side.
- Tap the other end of the PVC pipe with your sledge hammer.
How far can you run electrical wire?
In fact, the run of 10 miles will generally be less of a hazard, since the resistance of the wire will reduce the current. As a rough rule of thumb, try to keep the wiring of your 120-volt general purpose circuits under 75 feet in length. When you go over than, consider upping the wire size by one.What is 10 AWG wire used for?
building wire| 14 - Wire | 12 - Wire | 10 - Wire |
|---|---|---|
| Recommended For | Recommended For | Recommended For |
| Common residential wiring: Light fixtures, household receptacles. | Common residential wiring: Light fixtures, household receptacles, small appliances. | Large household appliances: Window air conditioner units, clothes dryers. |
