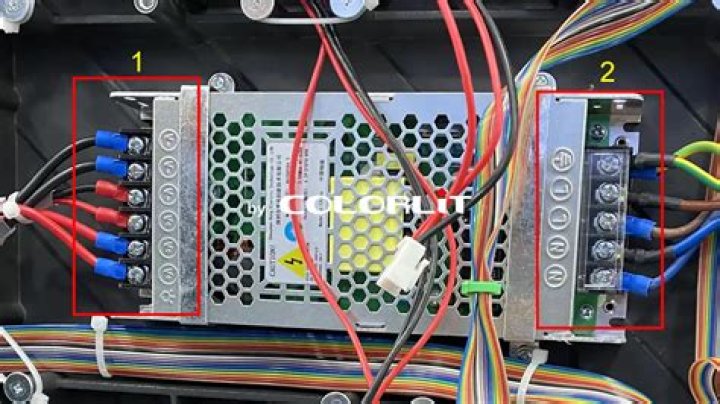

How do I choose a LED power supply?

How to choose a power supply for your LED strip project

Step 1: Determine the LED strip voltage. The first step is to figure out what the voltage of the LED strip is.
Step 2: Determine the power draw of the LED strip. Next, look for either a wattage (W) or amperage (A) specification for the LED strip.
Step 3: Determine the connection method.

Similarly, it is asked, how do I choose a LED strip power supply?

Make sure the total wattage of your LED strip lighting is at least 20 percent less than the power supply's rated wattage. For example, if you have an LED strip light that requires 80 watts of power to run, you'll need a power supply that's rated for at least 96 watts.

Subsequently, question is, can a LED driver be used as a power supply? LED power sources that provide a “constant-current” output have typically been referred to as LED drivers. In the past, AC-DC power supplies that provided a regulated “constant-voltage” to LEDs were referred to as LED power supplies. Today, the terms “LED driver” and “LED power supply” are used interchangeably.

Subsequently, one may also ask, how do I know what wattage my LED is?

Calculating LED Power To calculate an LED's power use, simply multiply the LED's voltage (in volts) by the LED's current (in amperes). The result, measured in watts, is the amount of power your LEDs use. For example, if your LED has a voltage of 3.6 and a current of 20 milliamperes, it will use 72 milliwatts of power.

How many amps does a LED light use?

Breaker Limitations Each CFL or LED bulb typically gives the same amount of light as a 60-watt incandescent bulb while drawing 10 watts or less, which is equivalent to a current draw of 1/12 amp. Thus a 15-amp circuit can safely control 180 or more fixtures that use CFL or LED bulbs.

HOW LONG CAN LED strip lights be?

24V Constant Current (CC) LED Strip is 65ft (20 meters). 120V LED Strip maximum length is 164ft (50 meters). 24V RGB & RGBW maximum run lengths are 23ft (7 metres).

How many LED strips can be connected together?

We recommend no more than two consecutive strips connected end-to-end. If you do more, you need to add a separate power bus with higher gauge wire to run the strips down the line, or add additional power supplies down the line.

Do LED strips use a lot of electricity?

Installed as your light source, LED strip lights guzzle less electricity to produce the same light output. The potential savings are very significant – LEDs draw up to 85% less electricity than conventional incandescent lighting, and around 18% less electricity than CFLs (Compact Fluorescent Lamps).

What is the maximum length of LED strip?

Maximum lengths LED strips are typically manufactured in 5m reels, as this is roughly the maximum length you can install in one continuous length without getting a voltage drop towards the end of the reel.

Are LED strip lights AC or DC?

LED strips, unfortunately, are not as simple as traditional incandescent light bulbs when it comes to installation and set up. Because they run on low voltage DC, they require a power supply device that converts 120V/240V AC (depending on your location) into the voltage signal that LED strips can use.

Do all LED lights need a driver?

Every LED light source requires a driver. Some LEDs already include an integrated driver within the bulb. LEDs designed for household use (bulbs with E26 / E27 or GU24 / GU10 bases and that run on 120V) typically already include a driver. However, low voltage LED light sources, such as some MR- bulbs (MR GU5.

How many watts is a 5m LED strip?

72 watts

How much current do LED strips draw?

Each segment of 3 LEDs draws approximately 20 milliAmperes from a 12V supply, per string of LEDs. So for each segment, there is a maximum 20mA draw from the red LEDs, 20mA draw from the green and 20mA from the blue. If you have the LED strip on full white (all LEDs lit) that would be 60mA per segment.

What is a 12 watt LED equivalent to?

LED equivalents to halogen light bulbs

Halogen Light Bulb Wattage	LED Equivalent Wattage
100 Watt	12 Watt
75 Watt	11 Watt
60 Watt	8 Watt
50 Watt	6 Watt

Do LED lights draw less amps?

You'll find out why LED lights draw less from your battery while providing the same amount – or even more — light than the old incandescent ones. When Dave connects incandescent bulbs to an amp meter, they draw up to 1.6 amps, but when LED lights are used, they only pull about . 26 amps.

How many LEDs can USB power?

Without negotiation, a USB port is only guaranteed to supply up to 100 mA (although many USB ports have no current control, and may supply 500 mA or more). According to the comments on Amazon, there is no recommended maximum current data for these LEDs, so I'm guessing 20 mA per LED would be acceptable.

How many LEDs can a 12v battery power?

So, a 12V battery wired to four 3V LEDs in series would distribute 3V to each of the LEDs. But that same 12V battery wired to four 3V LEDs in parallel would deliver the full 12V to each LED - enough to burn out the LEDs for sure! Wiring LEDs in parallel allows many LEDs to share just one low voltage power supply.

How many amps is 220 volts?

Usually, the small outlets can handle 7 Amps. So, for a 220V conventional outlet, the most power that should be connected to it is 1540 Watts! Is you need more Watts of power for something like tumble Dryer with heater element, you need a large power outlet that can handle 10 or 20 Amps (2200 W to 4400W).

Do LED bulbs get hot?

You probably know that LED bulbs run dramatically cooler than their incandescent cousins, but that doesn't mean they don't produce heat. LED bulbs do get hot, but the heat is pulled away by a heat sink in the base of the bulb.

What wattage should a bedroom be?

For a room with decent natural light, that should be around 60 watts. For a room with few/no windows, balance the 60 watt desk light with ambient overhead lights or bump that number up to 75 watts.

How many lumens do I need?

To determine the needed lumens, you will need to multiply your room square footage by your room foot-candle requirement. For example, a 100 square foot living room, which needs 10-20 foot-candles, will need 1,000-2,000 lumens. A 100 square foot dining room, which needs 30-40 foot-candles, will need 3,000-4,000 lumens.

How many amps is 10 watts?

Watts and amps conversion charts

Power	Voltage	Current
5 watts	12 volts	0.4167 amps
10 watts	12 volts	0.8333 amps
15 watts	12 volts	1.25 amps
20 watts	12 volts	1.6667 amps

Why do LED drivers get hot?

Overheating of the LED not only depreciates its light quality, but heat also gets trapped in the housing causing the driver to overheat which will result in reduced lifetime of the driver itself. If you run your driver close to the maximum temperature indicated for UL approval, the operating lifetime will be shortened.

What is an LED driver and power supply?

An LED driver is a self contained power supply which regulates the power required for an LED or array of LEDs. The light emitting diodes are low energy, lighting devices with a long lifespan and low energy consumption, hence the requirement for specialized power supplies.
