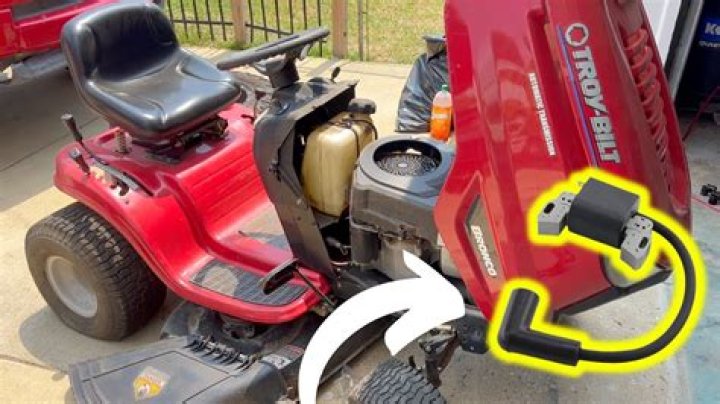

How do you test a lawn mower ignition coil?

VIDEO

.

Similarly, it is asked, how do you test a Kawasaki ignition coil?

Lay the ignition coil on a work surface. Set the dial on an ohm meter or multi-meter to 20k ohms. Insert the positive lead on the ohm meter into the end socket or the metal hoop on the spark plug wire. Put the negative lead of the tester onto the metal armature portion of the ignition coil.

Subsequently, question is, what causes no spark to the spark plug? Loss of spark is caused by anything that prevents coil voltage from jumping the electrode gap at the end of the spark plug. This includes worn, fouled or damaged spark plugs, bad plug wires or a cracked distributor cap.

Also to know is, how does an ignition coil work on a lawn mower?

When you start your lawn mower or small engine, you turn the flywheel and its magnets pass the coil (or armature). This creates a spark. Once the engine is running, the flywheel keeps rotating, the magnets keep passing the coil and the spark plug keep firing based on a specific timing.

How do you check a coil?

Connect your multimeter to the positive terminal or pin of your coil, and to the high output terminal that goes to the spark plug. Most ignition coils should have a secondary resistance falling somewhere between 6,000 to 10,000 ohms;however, refer to manufacturer specifications for the correct range.

Related Question Answers

How do I know if my Magneto is bad?

The spark plug is fouled and shorted to ground or is open and the magneto, which is functioning normally, is unable to fire it. A typical bad plug will cause an immediate drop of 250 or more RPM, at the mag check. The key indicator is the suddenness of the drop. You have tried leaning and cleaning the plug to no avail.

How do you check a spark plug with a multimeter?

Test for a Bad Spark Plug

1. Connect test leads to the multimeter by plugging them into the jacks.
2. Set your multimeter to the "Ohms" position.
3. Touch the test leads together.
4. Move the test leads apart.
5. Remove the ignition wire from the spark plug.

How does an ignition coil work?

An ignition coil (also called a spark coil) is an induction coil in an automobile's ignition system that transforms the battery's low voltage to the thousands of volts needed to create an electric spark in the spark plugs to ignite the fuel.

How do you test a condenser?

Touch the red lead to the hot connector on the condenser. Place the black lead to the metal case on the condenser. The meter's needle should jump slightly to the right (toward 0-ohms), then should drop back to the left towards infinite resistance). Hold the leads in place for 15 to 20 seconds.

Why do ignition coils fail?

Ignition coils are very rugged and reliable, but can fail for a variety of reasons. Heat and vibration can damage the coil's windings and insulation causing shorts or opens in the primary or secondary windings. But the number one killer of ignition coils is voltage overload caused by bad spark plugs or plug wires.

How do you test a coil on a small engine?

Testing the ignition coil and the spark plug Connect the tester between the spark plug boot and the spark plug. Then start the engine and watch the tester. Most people think you can check a small engine's ignition system by removing the spark plug and grounding it while cranking the engine and watching for a spark.

What does a weak spark look like?

The strength of the spark is revealed in the color. A red or yellow spark is weak and probably will not spark in the cylinder. A blue or white spark is strong and has enough voltage to fight across the spark plug gap even under pressure within the cylinder.

Does my Briggs and Stratton have points?

Since 1982, Briggs & Stratton engines have used a solid-state ignition. Models built before 1982 employed a magneto, points and condenser system to generate spark for the spark plug. If you are using an older model Briggs & Stratton engine that has no spark, you might need to set the points.

How does a Briggs and Stratton magneto work?

How does a magneto work? Most small lawn mowers, chain saws, trimmers and other small gasoline engines do not need a battery. Instead, they actually generate the power for the spark plug using a magneto. The voltage causes a spark to jump across the spark plug's gap, and the spark ignites the fuel in the engine.

How do small engines work?

They have ports (holes) in the cylinder wall and the fuel-air mix is sucked in through crankcase at the bottom of the engine. Spark ignites fuel-air. Exploding fuel pushes piston down (power). The piston compresses fuel-air in the crankcase as it goes down.

Should magneto touch flywheel?

It should not be touching. Use a standard size business card to adjust the air gap between the coil and flywheel magnets.

What is the gap between the coil and flywheel?

The gap setting on the coil should be . 011. This gap is between the magnet and the coil. Turn the flywheel so it is aligned with the coil.

What are the symptoms of a failing ignition coil?

Usually a faulty ignition coil will produce a few symptoms that alert the driver of a potential issue.

• Engine misfires, rough idle, and loss of power. One of the most common symptoms associated with a faulty ignition coil is engine performance issues.
• Check Engine Light comes on.
• Car is not starting.

How do you know if your ignition control module is bad?

How to Tell if You Have a Bad Ignition Control Module

• Check engine light is on: The ECM monitors all parts of the vehicle that could affect emissions.
• Engine is misfiring or running rough: An engine misfire results from incomplete combustion.
• Stalling: A failing ignition module can occasionally prevent the engine from getting spark, causing it to stall.

What is the purpose of ignition coil?

Ignition Coil Function. The ignition coil is a high voltage (low current) transformer that converts the vehicle's 12 volt power supply to the 25-30,000 volts required to jump the gap of the spark plug, thus instigating combustion.

What is the difference between a magneto and a distributor?

A magneto is a combination of a distributor and generator built into one unit. It is unlike a conventional distributor in that it creates its own spark energy without external voltage. This multiplied charge causes the magneto to produce a spark at a much higher voltage than was created by the primary windings.

What would cause a lawn mower not to fire?

Your Mower Won't Start: Other possible causes include: Loose, Dirty or Disconnected Spark Plug in Your Lawn Mower: Check it out, clean off debris, re-connect and tighten. Dirty Air Filter: Clean or replace. Fuel Not Reaching the Engine: Tap the side of the carburetor to help the flow of gas.

How does a Briggs and Stratton ignition coil work?

When you start your lawn mower or small engine, you turn the flywheel and its magnets pass the coil (or armature). This creates a spark. Once the engine is running, the flywheel keeps rotating, the magnets keep passing the coil and the spark plug keep firing based on a specific timing.
