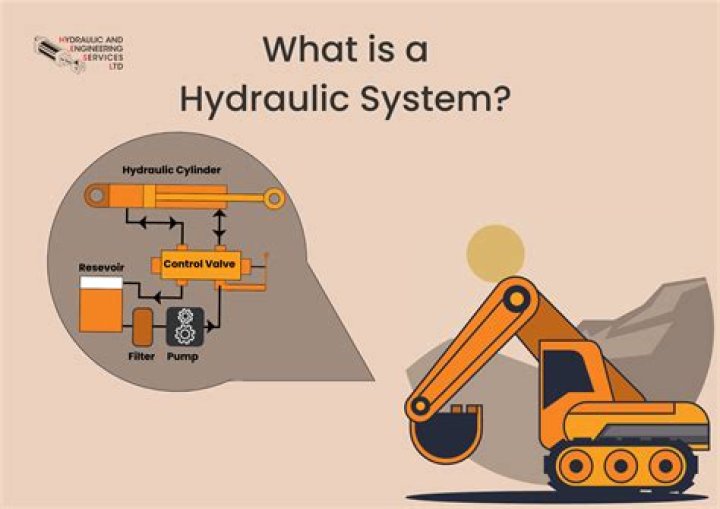

How does a hydraulic work?

Hydraulic systems use the pump to push hydraulic fluid through the system to create fluid power. The fluid passes through the valves and flows to the cylinder where the hydraulic energy converts back into mechanical energy. The valves help to direct the flow of the liquid and relieve pressure when needed.

.

Thereof, why are hydraulics so powerful?

Hydraulics work because you can't make liquid smaller. So you can push a little bit of liquid a long ways into a tube, or you can push a lot of liquid a little way, and everything will be at the same pressure. Same pressure and more area means more force.

Furthermore, how does a hydraulic arm work? In a Hydraulic robotic arm the mode of actuation is by hydraulic actuators (cylinder n' piston). It's a linear actuator. The hydraulic system is mounted on one link and the piston push - pulls the link next to it, this linear actuation arrangement causes the joints to rotate and hence the arm operates.

Subsequently, one may also ask, how are hydraulics used?

In its fluid power applications, hydraulics is used for the generation, control, and transmission of power by the use of pressurized liquids. Hydraulic topics range through some parts of science and most of engineering modules, and cover concepts such as pipe flow, dam design, fluidics and fluid control circuitry.

What are the two types of hydraulic systems?

Open loop hydraulic system and closed loop hydraulic system are the two types of hydraulic system. In an open loop system, when the actuating mechanism is idle, there will be fluid flow but no pressure. For a closed loop system, when the pump operates there will be pressure for fluids.

Related Question Answers

What are the basics of hydraulics?

Basic components of a hydraulic system A basic system consists of a hydraulic pump, reservoir for hydraulic fluid, directional valve, check valve, pressure relieve valve, selector valve, actuator, and filter.

What is the purpose of hydraulics?

The major function of a hydraulic fluid is to provide energy transmission through the system which enables work and motion to be accomplished. Hydraulic fluids are also responsible for lubrication, heat transfer and contamination control.

How much weight can hydraulics lift?

In the example above, we showed that a 1 1/8 piston has an area of about 1 square inch. One square inch x 400 PSI = 400 pounds of lift. Now push the 3/16″ plunger down with a force of 50 pounds and we have the capacity to lift a weight equal to 2,000 pounds.

What is called hydraulic?

Hydraulic power, also called Fluid Power, power transmitted by the controlled circulation of pressurized fluid, usually a water-soluble oil or water–glycol mixture, to a motor that converts it into a mechanical output capable of doing work on a load.

How do you increase hydraulic flow?

Why should you use an intensifier

1. Low operating pressure in the system.
2. Use existing installed power source.
3. Use standard tubing, hoses and valves.
4. Easy to accommodate where needed.
5. No need for extra tubing or special parts.
6. Full flow available at pump pressure.
7. Use existing equipment for the new task.

What are five hydraulic devices?

Some examples of hydraulic devices:

• Hydraulic jack for your car.
• Hydraulic steering.
• Hydraulic brake.
• Hydraulic press.
• Cladding machine.
• Brick making machine.
• Hydraulic power pack.
• Crane.

What are examples of hydraulics?

Examples of Hydraulic System

• Hydraulic Lifts. Hydraulic lifts are used for moving goods or people vertically.
• Hydraulic Brakes. Braking system of the vehicle is an important example of hydraulics.
• Hydraulic Steering.
• Hydraulic Jacks.
• Heavy Equipment.
• Airplanes.
• Hydraulic Shock Absorbers.

Where are hydraulics found?

Industry, manufacturing and entertainment venues also use hydraulic machinery. Hydraulic machines such has spinning motors can be found in amusement parks, giving motion to rides, such as a Ferris wheel.

How do you build hydraulics?

How to Make a Simple Hydraulic System

1. Prepare Your Materials. Get a 20 ml syringe, a 100 ml syringe, some rubber tubing and vegetable oil.
2. Fill the Syringes. Fill the syringes half full with vegetable oil.
3. Attach the Tubing. Insert the nozzle of the larger syringe into one end of the rubber tubing.
4. Test Your Simple Hydraulic System.

How do you stop a hydraulic leak?

Here are ways that you can stop those leaks.

1. Re-engineer.
2. Use decent connectors.
3. Tighten Them Properly — incorrect torque can be blamed for most leaks from 37° flare joints in addition to compression-type tube fittings.
4. Eliminate Vibration — if there is something that can cause stress fatigue, it's vibration.

How do you describe a hydraulic lift?

A hydraulic lift is a type of machine that uses a hydraulic apparatus to lift or move objects using the force created when pressure is exerted on liquid in a piston. Force then produces "lift" and "work."

What do hydraulics cost?

The simplest systems cost around $400 U.S., while a more sophisticated set up can cost more that $1,000 -- just for the parts. The amount and cost of the labor involved depend on the system's complexity. The most coveted type of suspension is a hydraulic suspension.

When did hydraulics come out?

A notable advancement in the invention of hydraulic power took place in 1648, when Frenchman, Blaise Pascal, discovered that fluid pressure remained uniformly constant throughout a closed system. This went on to become known as Pascal's Law.

What is the purpose of a hydraulic arm?

APPLICATIONS ? The hydraulic arm that can grip or pick thinks in industrial purpose. ? These arms are used in assembly lines of mega factories to assemble the various parts of product and also to paint vehicles. ? They are also used in earth movers to pick up heavy weight and keep them where required.

How do you get air out of hydraulic system?

Rod Type Hydraulic Cylinders:

1. Open the air valve at the upper side or the hydraulic cylinder.
2. Make sure all hoses or pipes are connected properly.
3. Set-up the hydraulic system and start it up.
4. Extend the piston rod slowly with no pressure built-up.
5. Shut down the system and close the air valve.

Where are hydraulic arms used?

Hydraulic systems are used in countless applications: brakes and steering on cars; hydraulic lifts and jacks for servicing cars; airplane wing flaps, stabilizer controls, and landing gear; mechanical arms on garbage trucks; blades on bulldozers; and so on. Pressure is defined as force per unit area (p = F/A).

How does a hydraulic lift work?

Hydraulic lifts work on a basic principle: to go up, a pump pushes oil into the cylinder, pushing the piston (which pushes the lift car) up. To go down, the valve opens and oil is allowed to flow back into the reservoir, and is pushed back using the gravitational force of the lift car.

What is the basic principle behind hydraulic systems?

Pascal's Law, framed by Blaise Pascal, states that “Pressure applied to any part of a confined fluid transmits to every other part with no loss. The pressure acts with equal force on all equal areas of the confining walls and perpendicular to the walls." This is the basic principle for any hydraulic system.

What is meant by hydraulic pressure?

Hydraulic pressure is the pressure of hydraulic fluid which it exerts in all direction of a vessel, hose or anything in which it is supposed to exert the force per unit area. This pressure is responsible to create flow in a hydraulic system as fluid flows from high pressure to low pressure.
