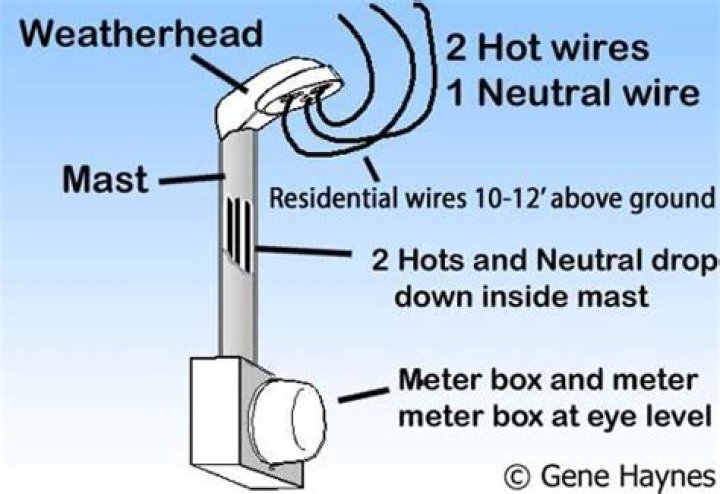

What is a Weatherhead used for?
A weatherhead, also called a weathercap, service head, service entrance cap, or gooseneck (slang) is a weatherproof service drop entry point where overhead power or telephone wires enter a building, or where wires transition between overhead and underground cables.
.
Keeping this in consideration, how much does a Weatherhead cost?
It costs $1,100 to replace the weatherhead, service cable from weatherhead to meter box and the service entrance conductor.
One may also ask, what is a mast on a house? Definition of mast house. : a small deckhouse built around a mast to serve as a support for derricks or sometimes as a winch platform and used for housing electric control equipment where electric winches are fitted.
Also question is, what are the three wires on a Weatherhead?
Usually three wires in service drop Usually, there will be three wires coming in through the service drop: two hot wires and a neutral wire. Sometimes, the neutral also is the support cable for hot wires. Other times, there is a separate cable supporting the three conductors.
How do I connect to service drop?
The bottom end of the service mast connects to the home's service panel, or breaker box. An additional set of service cables starts at the service panel (and the electric meter) and runs up through and out of the service head. These cables connect to the service drop cables near the outside of the mast.
Related Question AnswersWho is responsible for electric line to house?
Meter sockets and power masts attached to a house are the responsibility of the homeowner. OPPD is responsible for the wires from the power pole to the point just before they enter a property's conduit system.How much does a meter box cost?
The electric meter box replacement cost ranges from $200 to $500 on average and depends on the number of circuits it serves, which can number from 8 to 30. Some are more resilient and can be buried underground.What is a riser in electrical?
Riser. A riser is a set of devices that connects an overhead line to an underground line. A riser has a conduit from the ground up the pole where potheads are used to connect to the overhead lines. Figure 1. Riser.How much does it cost to fix a power line?
A typical new 69 kV overhead single-circuit transmission line costs approximately $285,000 per mile as opposed to $1.5 million per mile for a new 69 kV underground line (without the terminals).What is an electrical service riser?
An electrical riser is a pipe run or electrical run wire run that Rises from one floor to another usually a service comes in in the basement where the switch gear is it goes from floor to floor from a main panel to a Step Down Transformer to a subpanel an electrical system in most buildings goes like this you have theWhat is exterior electrical system?
Exterior line insurance costs $4.99 monthly and has nothing to do with surge protection. Instead, it covers certain electrical system components on the outside of a dwelling. One is the electric meter base. Homes with underground electric service don't have weatherheads.How many wires come into a house?
three wiresWhere is the service point located?
In most residential systems, the logical service point location is at the meter cabinet. The meter cabinet is sealed and often belongs to the electric utility. There are two common configurations of meter and service equipment cabinets in a service lateral system.How far can you run power from a meter?
200 feet is fine. Run your supply line underground in 3" PVC conduit from the pole to your house, and you'll never have a problem with that segment again. You can actually run much farther than that, you just increase the size of the wires.What is the voltage coming into my house?
These days, almost every residential customer can get 120 volts from their wall outlet. However, power is typically delivered into your home at a nominal voltage of 240 volts. At the transformer, the single phase power from the utility company is split into 3 wires: 2 line wires and a ground.What are the 3 power lines?
Below the static line are three power lines called transmission lines. Transmission lines get typically labeled "A," "B," and "C," and called the "A-B-C Phase." They conduct high voltage electricity from power plants to substations.What is a service cable?
Wires and cables are primarily used to transmit electrical energy from its main source to the various users such as manufacturing industries, factories, business offices as well as the home. Service Entrance Cable Type SER is a type of cable that is used widely consumers due to its simple but sleek design.What is triplex wire?
Triplex cable is usually used for overhead single phase service. Triplex cable contains three individual wires twisted around each other: two insulated conductors called the "hot" legs of the service and a bare or uninsulated wire which is the neutral wire of the service.How do you measure a service conductor?
Size and rating Service entrance conductors must have sufficient ampacity for the loads, per Parts III, IV, or V of Art. 220 [230.42]. Before applying any adjustment or correction factors, size the service entrance conductors at least 125% of the continuous loads, plus 100% of the noncontinuous loads.What is a drip loop?
Definition of drip loop. : a downward loop (as in a wire entering a building to permit rainwater to drip off or in a pipe to collect water condensed in the pipe system)What is a weather head for electric?
A weatherhead, also called a weathercap, service head, service entrance cap, or gooseneck (slang) is a weatherproof service drop entry point where overhead power or telephone wires enter a building, or where wires transition between overhead and underground cables.What size conduit do I need for a 200 amp service?
| SERVICE ENTRANCE CONDUCTORS SIZE AND RATING | ||
|---|---|---|
| Service or Feeder Rating | Copper Conductors | Minimum Conduit Size |
| 125 Amps | #2 AWG | 1 ¼ inch |
| 150 Amps | #1 AWG | 1 ¼ inch |
| 200 Amps | #2/0 AWG | 1 ½ inch |
